Flail mower LEOPARD DUO 2,00-2,80

The LEOPARD DUO multi-purpose shredder is designed to mulch the remains of crop plants and shred severed tree and shrub branches. It is perfect for mulching meadows and pastures.

User manuals Find a dealer

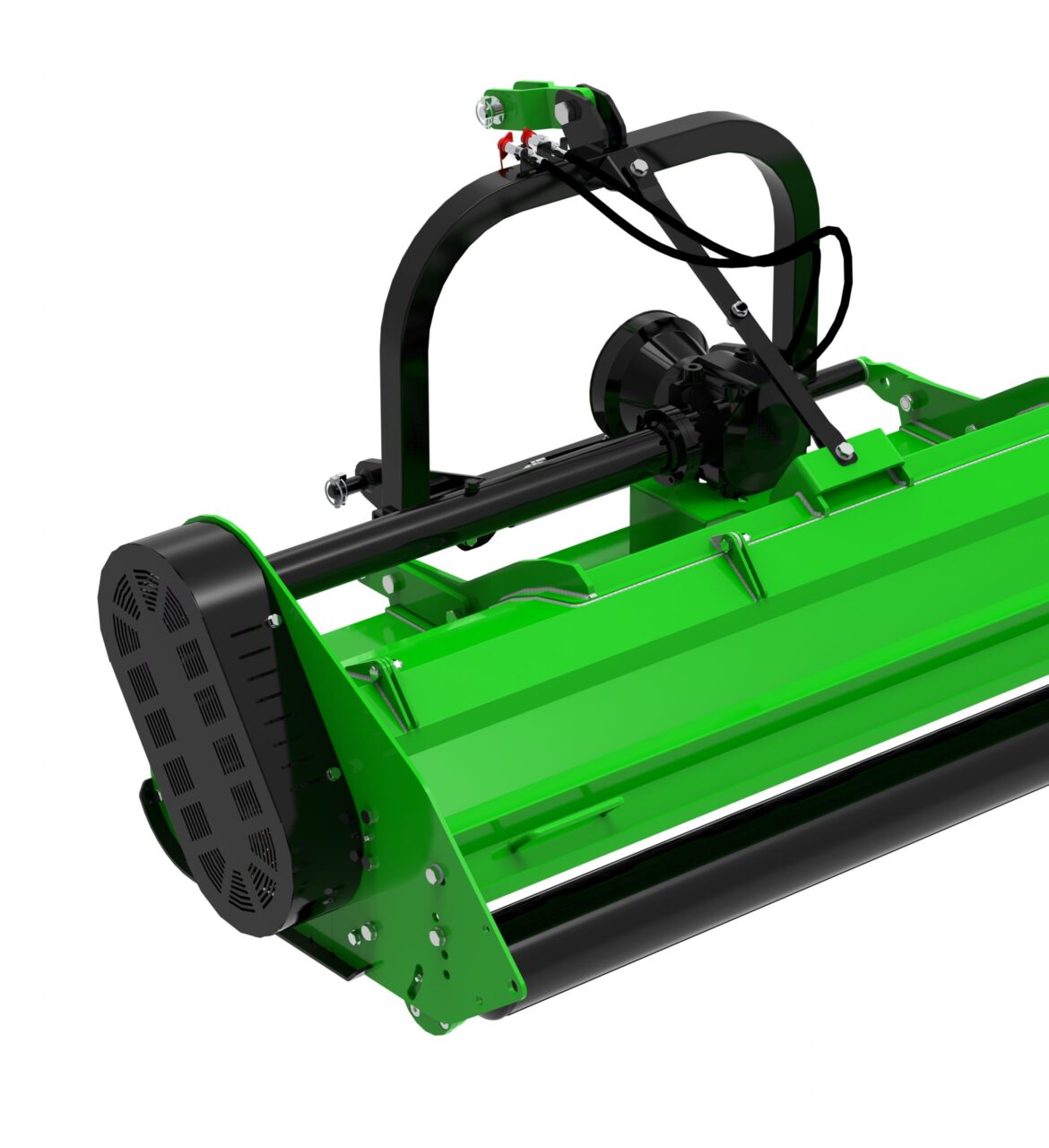

Pulley transmission

  • The machine is driven by 4 V-belts, tensioned via a bolt adjuster
  • Fan mounted on the large pulley to cool down the transmission and V-belts
  • Mounted on self-centring bearings – provide longer life and enable transmission of high torques

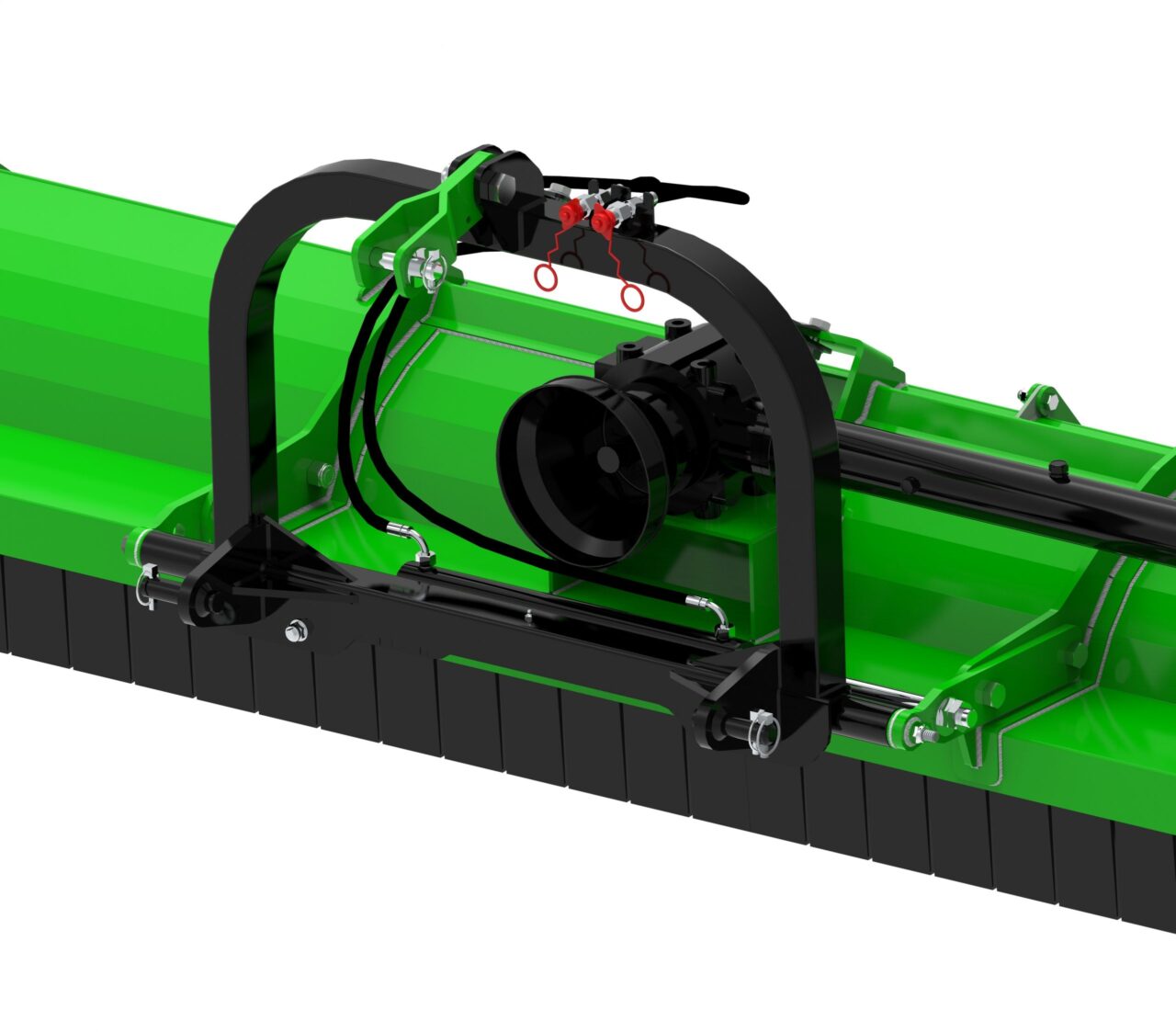

Hydraulic side shift

  • Offset working range 400mm
  • Improves manoeuvrability around obstacles

Robust stone guard and skids

  • Skids made of wear resistant steel - they can be quickly replaced
  • Robust stone guard made of flexible material

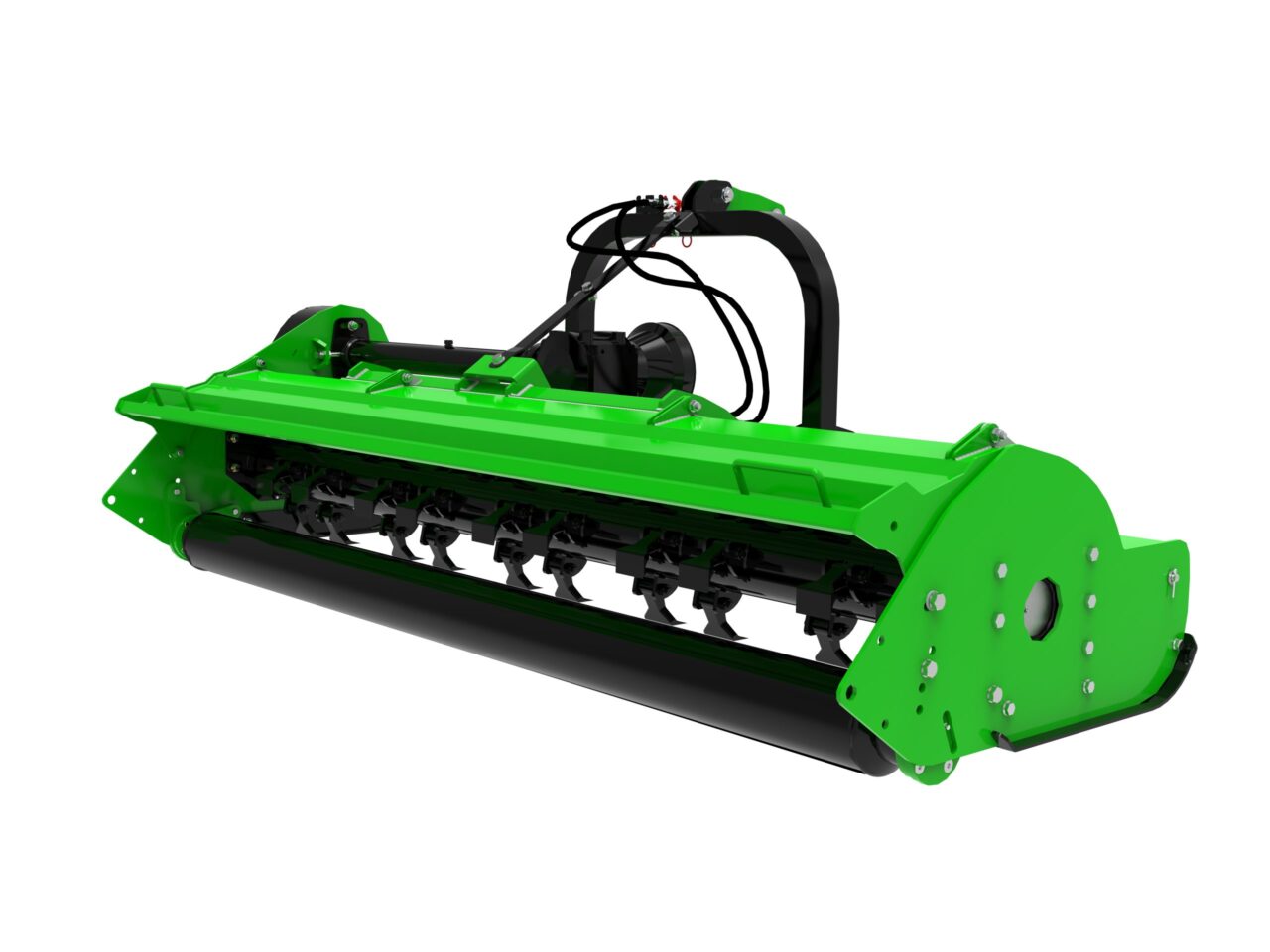

Openable rear door

  • Allows for easier flowing of crop residue
  • Ensures smooth flow of the mulched mass
  • Lowers power requirement
  • As standard equipment

Cutting height adjustment

  • Wheels - cutting height adjustment from 2 to 25cm
  • Contour roller - cutting height adjustment from 2 to 8cm

Protection

  • PTO shaft fitted with shear-pin clutch
  • CLAMPEX clutch system on both pulleys

Working shaft equipment

  • Flail hammers
  • Y blades

Technical data:

TypeDUO 200DUO 250DUO 280
Working width2,00m2,50m2,80m
Power requirement [HP] 405075
Flail quantity 324046
Knife quantity 648092
PTO speed 540540540
Weight with wheels [kg]517574632
Weight with roller [kg]481545604
PTO shaft620 Nm830 Nm830 Nm
Hydraulic shift [mm]400400400
*Machine without PTO as standard

Standard equipment:

  • Hydraulic side shift
  • Openable rear flap
  • Rear roller or wheels
  • Working shaft equipped with Y-blades or flail hammers
  • Counter-blade
  • V-belts cooling process

Accessories:

  • PTO shaft Leopard DUO 200 - 620 Nm with shear pin clutch
  • PTO shaft Leopard DUO 250 and 280 - 830 Nm with shear pin clutch
