Flail mower ECO

This light flail mower is designed for mowing squares, green areas, playing fields, roadsides. Perfect for small municipal tractors.

User manuals

Reinforced three-point hitch

Made of one folded steel profile

Rear contour roller

Controls mowing height

  • Allows to follow ground contours perfectly

Protective skids and rubber cover

  • Skids width 9 cm - increase hitch durability
  • Protect the machine from obstacles

Gearbox transmission

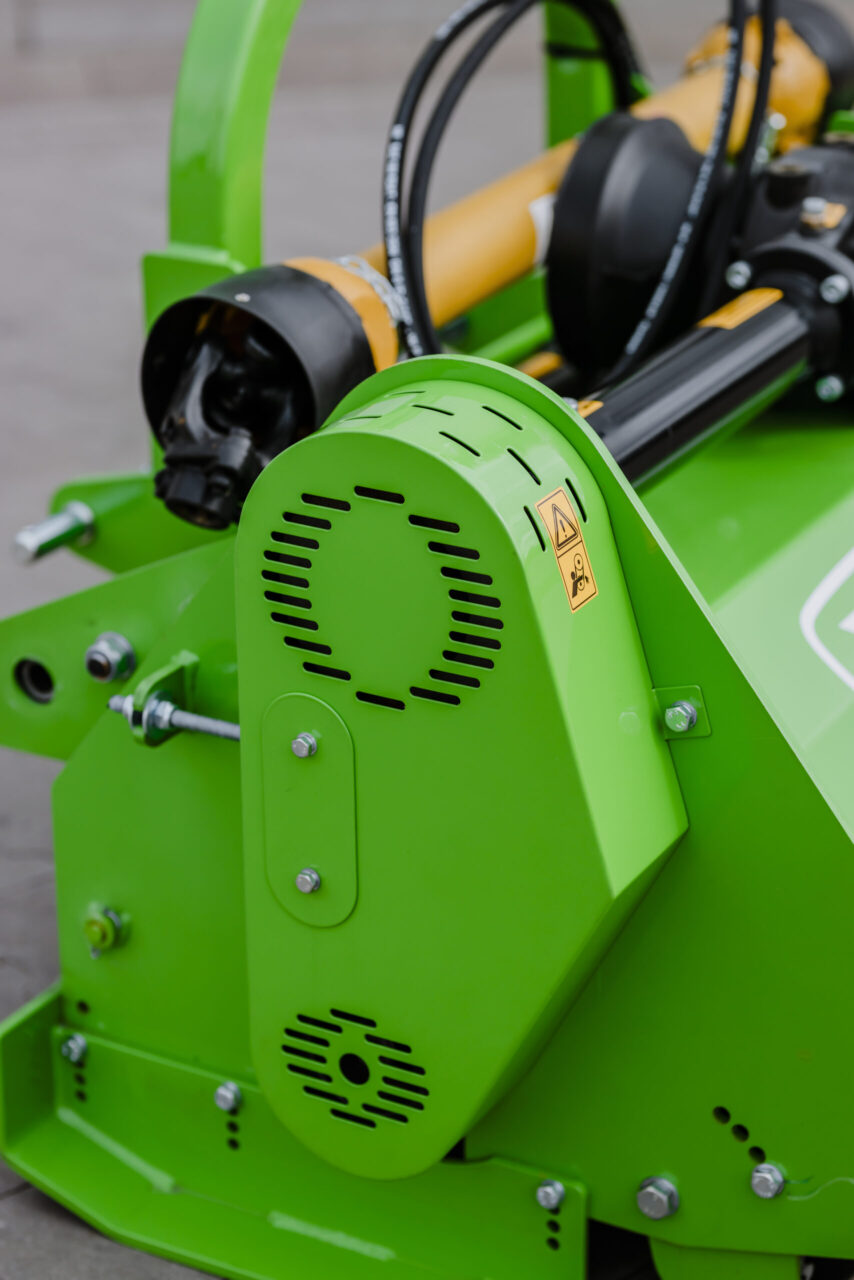

Belt transmission

  • Drive is transmitted by two or four V-belts
  • CLAMPEX clutch system

Robust stone guard

Made of flexible and resistant material

Hydraulic shift

Up to 410mm offset movement

  • Can be mounted in fail mowers ECO 135, 150, 180, 200, 220

Flail hammers on the working shaft

Technical data:

TypeECO 100ECO 135ECO 150ECO 180ECO 200ECO 220
Working width 1,00 m1,35 m1,50 m1,80 m2,00 m2,20m
Power requirement [HP]152530405070
Number of flails162224263034
PTO speed [rpm]540540540540540540
Weight [kg]253 272 284 418 431 450
PTO shaft460 Nm460 Nm460 Nm460 Nm460 Nm460 Nm
Hydraulic shift [mm]*410410410410410
*Can be mounted in fail mowers ECO 135, 150, 180, 200, 220

Standard equipment:

  • PTO shaft 460Nm with shear-pin clutch
  • Robust stone guard
  • Skids
  • Working shaft with flail hammers
  • Rear contour roller

Accessories:

  • Hydraulic shift for ECO 135, 150, 180, 200, 220 - up to 410mm offset movement
