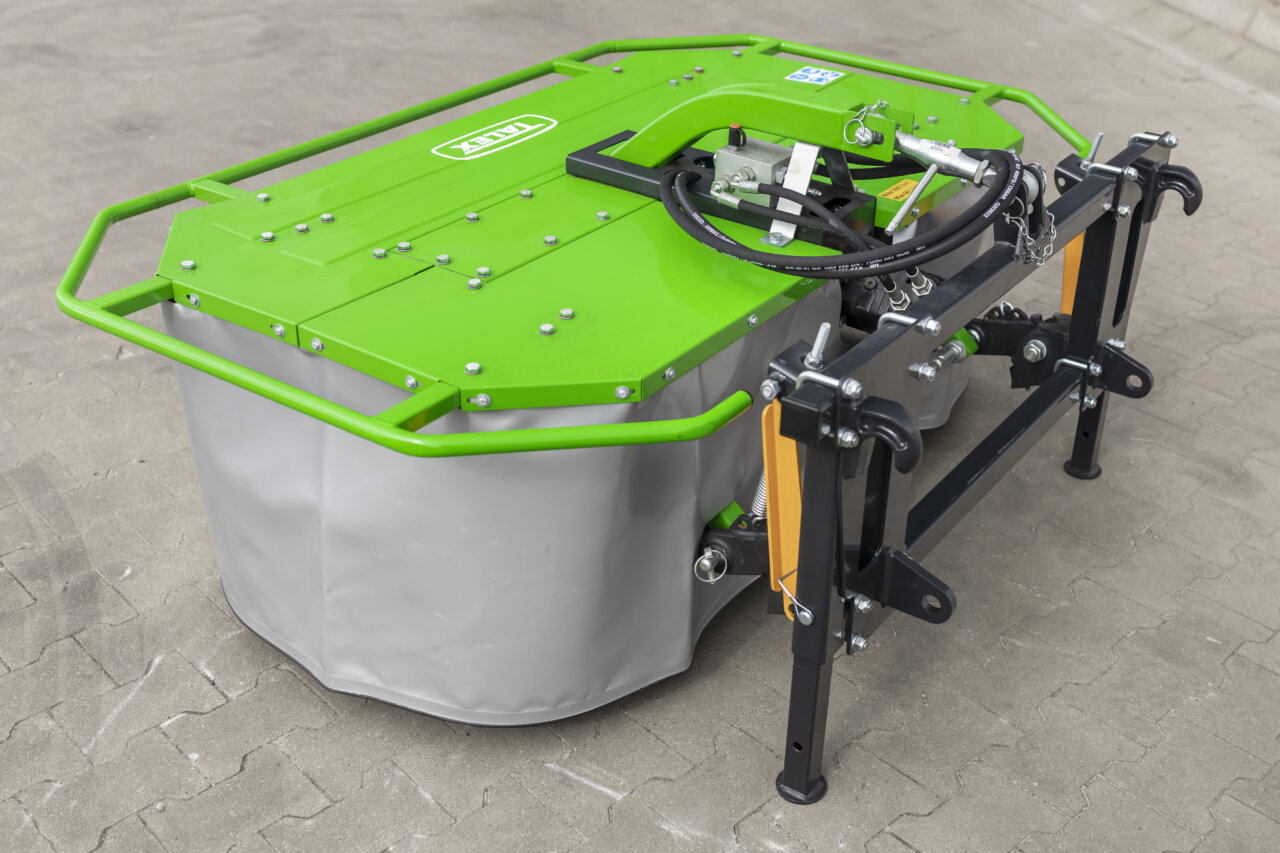

Rotary Mower 1,35 MINI MINI with hydraulic drive

The 1.35-metre MINI and MINI-MINI mowers make the range of rotary mowers complete. A shorter design and reduced weight are their main advantages. They are ideal for maintaining urban greenery, orchards and small fields. They can be successfully mounted to tractors from 13 kW..

User manuals Find a dealer

Protective covers

  • Metal cover - reinforced, made of 1.5 mm thick steel
  • Canvas tarpaulin - reinforced along the bottom edge with a rubber collar

Drive

  • Mower is driven by hydraulic motor

Mounting

  • Adaptive system fixed with the adapter frame
  • We make mounts for all popular telehandlers on the market: Weidemann, Giant, Euro, etc.

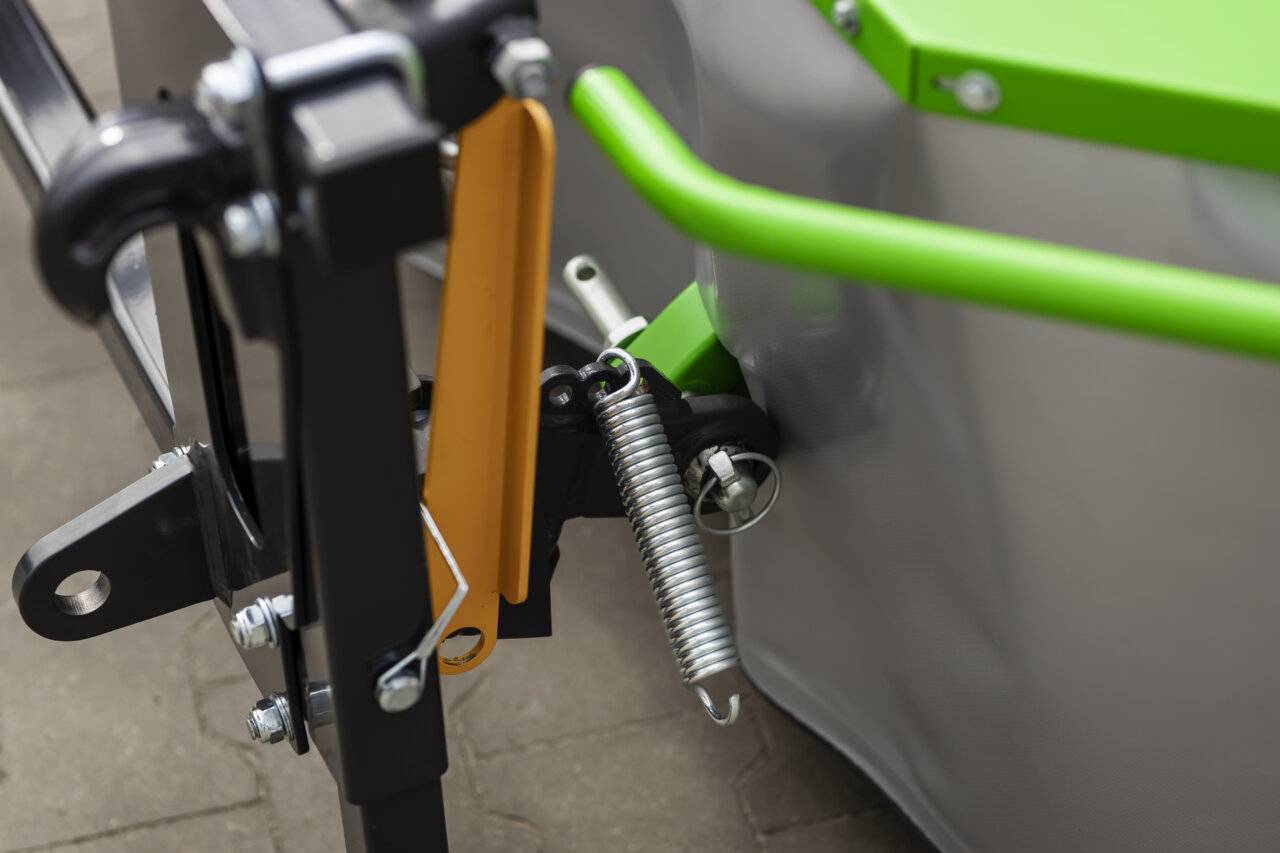

Floating system

  • The system implemented on the adapter
  • Based on springs and ball joint rods

Technical data:

ModelZ079H
Mowing width [mm] 1350
Power demand [kW] 13
Number of work drums [szt.]2
Number of knives [szt.] 8
Mowing height [mm] 32 or 42
Work drums rotational speed [RPM]approx. 1480
Efficiency [ha/h] 1
Max. working speed [km/h] 10
Transport speed [km/h]20
Max. hydraulic pressure [bar]160
Oil demand [l/min]40-50
Mass [kg]254
Length [mm]1400
Width [mm]1750
Height [mm]770

Standard equipment:

  • Metal cover
  • Protective tarpaulins
  • Blade quick-change spanner
  • Box of spare blades
  • Mounts for loaders or telehandlers
  • Floating system
  • EURO hydraulic coupling

Additional equipment:
