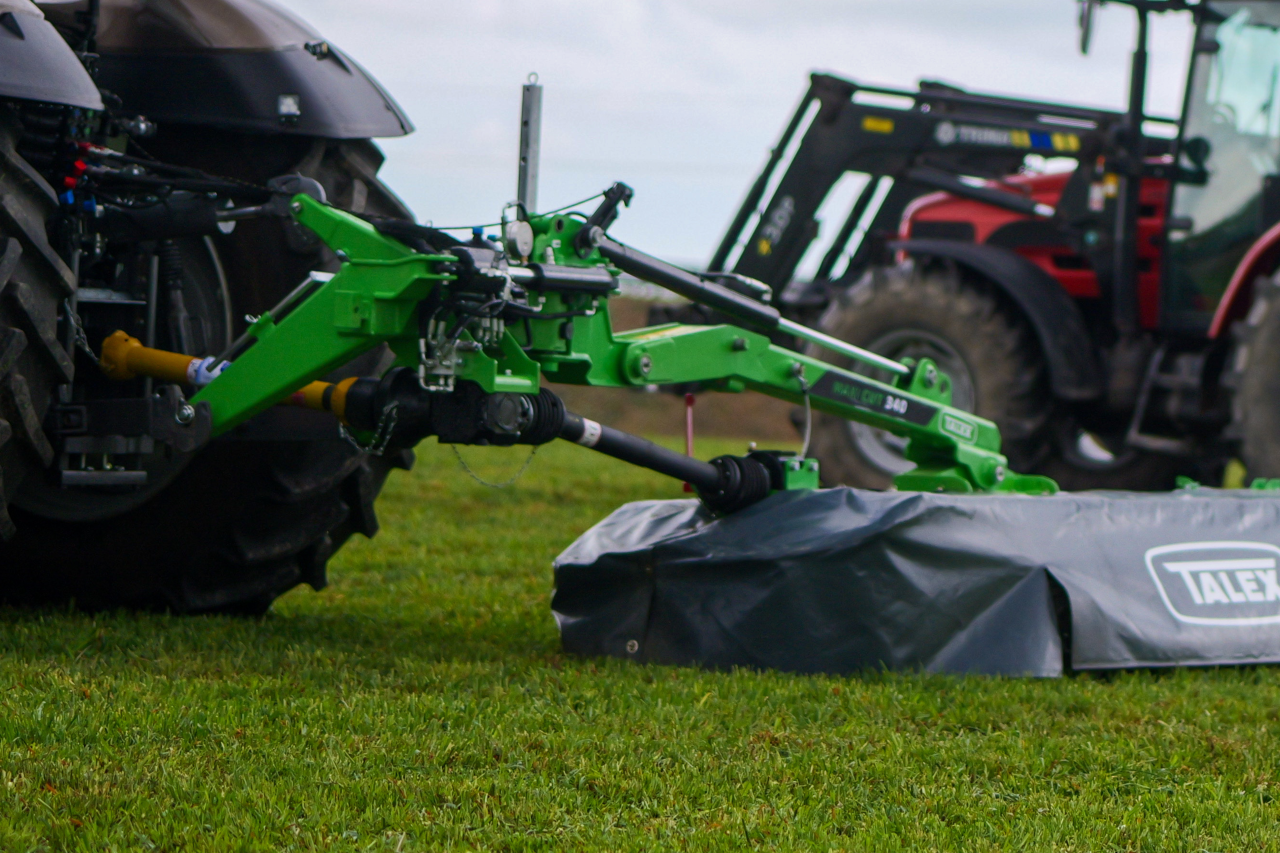

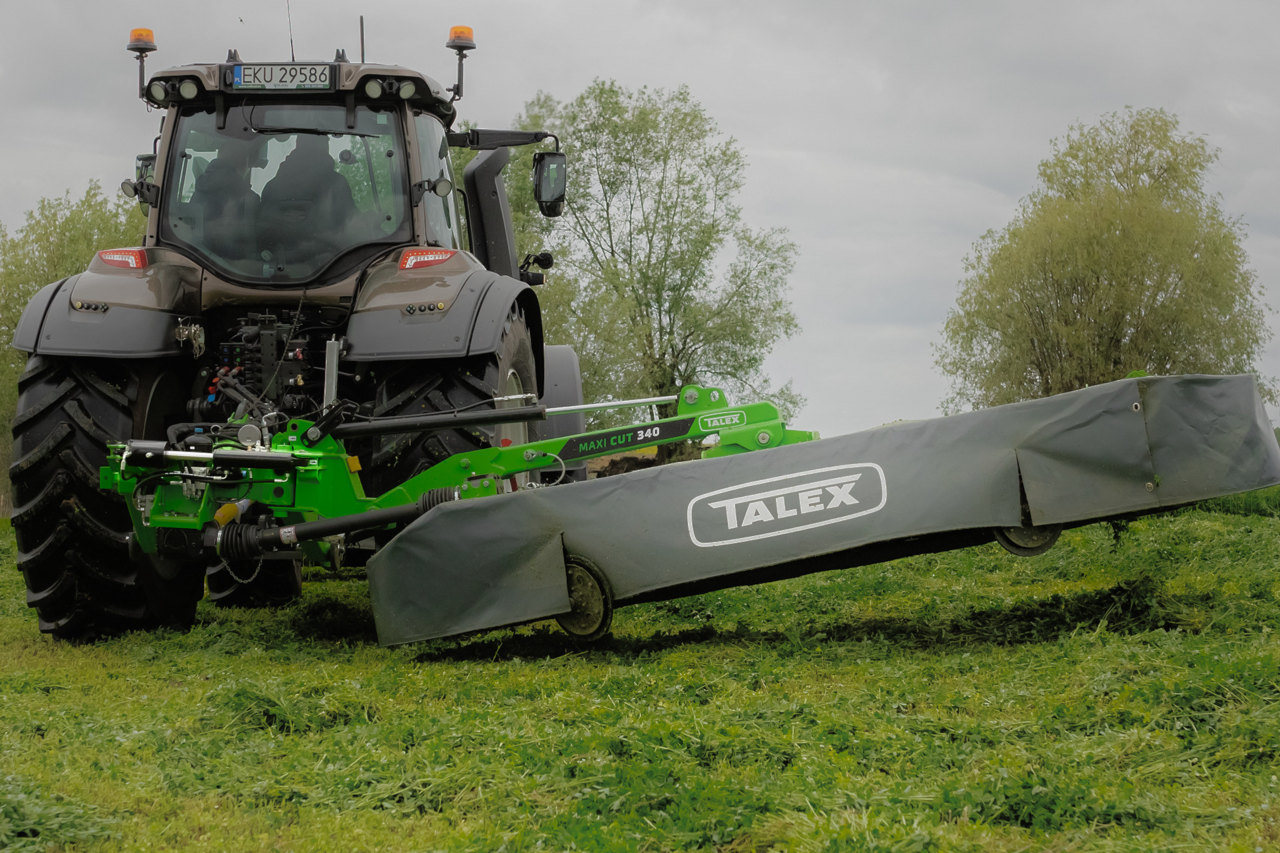

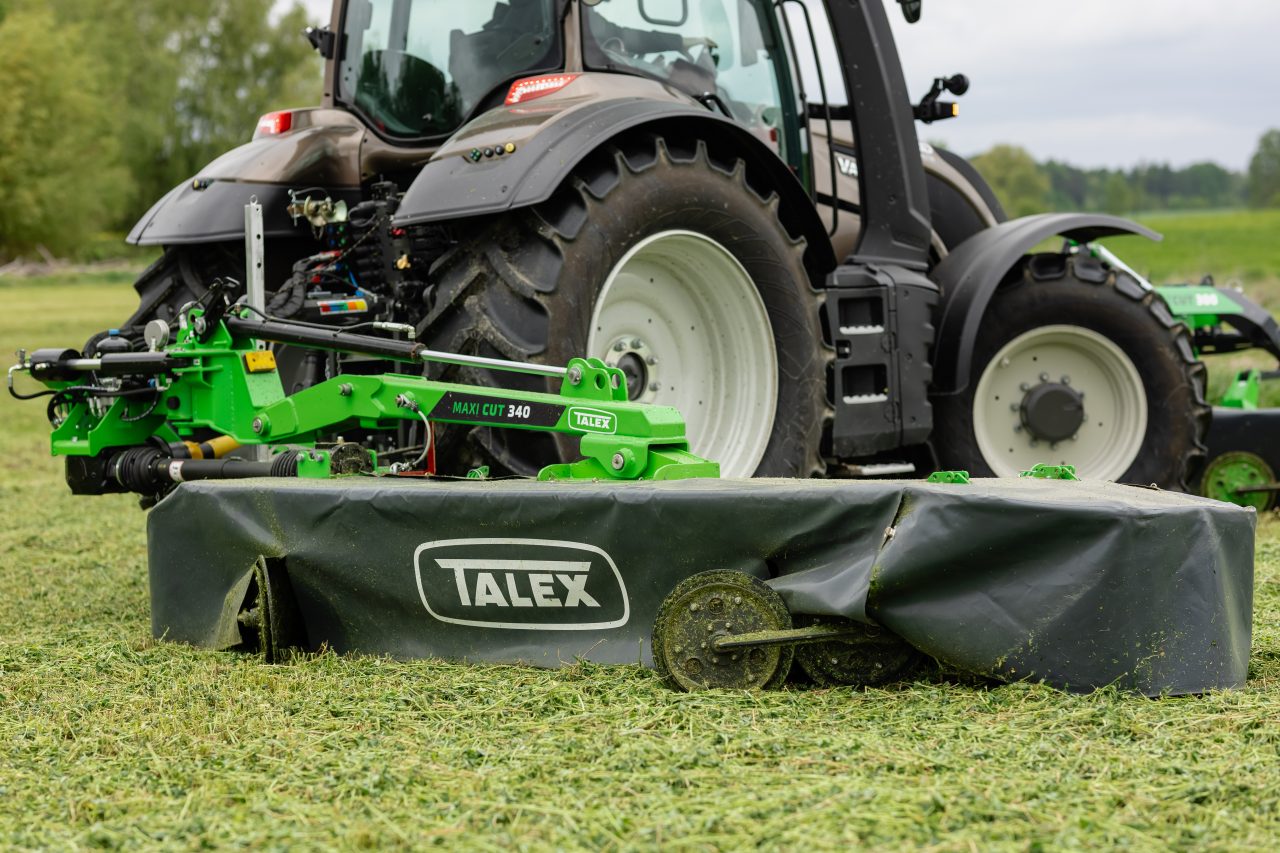

Central Suspension Disc Mowers MAXI CUT

Rear disc mowers from the MAXI CUT series, thanks to the central suspension, are an optimal choice for intensive work on uneven land. This heavy-duty mower offers high comfort and cutting quality. A number of modern solutions have made it possible to create a machine that meets the expectations of the most demanding customers.

Find a dealer Please send me a quote
Recommended tractor power
90 KM
Type of mounting
  • For a tractor
Available working width
3,00 | 3,40 m
User manuals

Hydraulic cutterbar pressure relief system

The hydraulic-pneumatic system relieves the cutterbar and regulates its ground pressure, improving terrain following and mowing quality. The swivel cylinder also serves as a hydraulic safety valve.

Drive transmission assembly

The torque delivered from the tractor’s PTO shaft is transmitted through the telescopic PTO shaft to the central gearbox. The drive is then transferred to the side gearbox, which drives the cutterbar.

Three-point hitch

Heavy-duty hitch construction

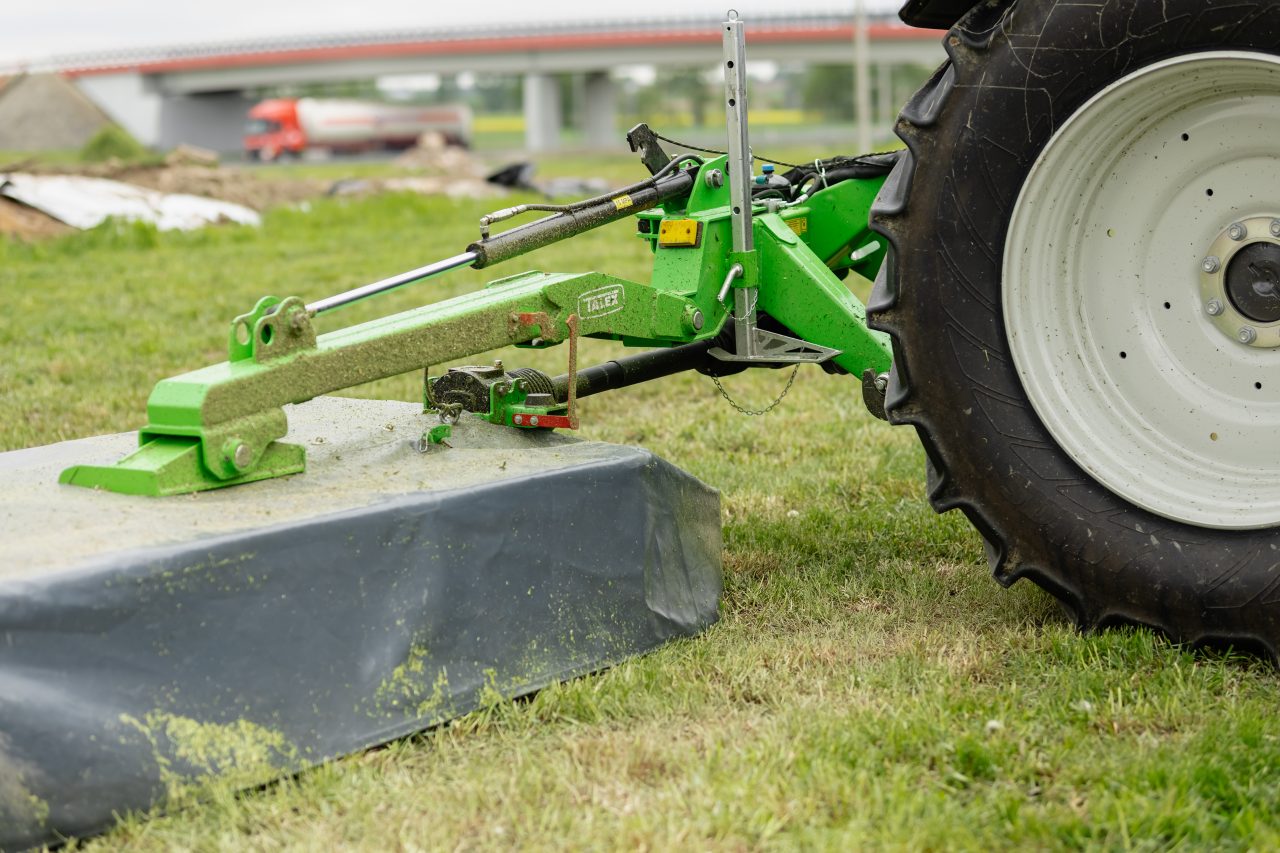

Hydraulic breakback safety system

The disc mower is equipped with an overload protection system that protects the working unit and the machine’s structure from damage. When an obstacle is encountered, the unit deflects and lifts, safely passing over the obstacle while reducing structural loads.

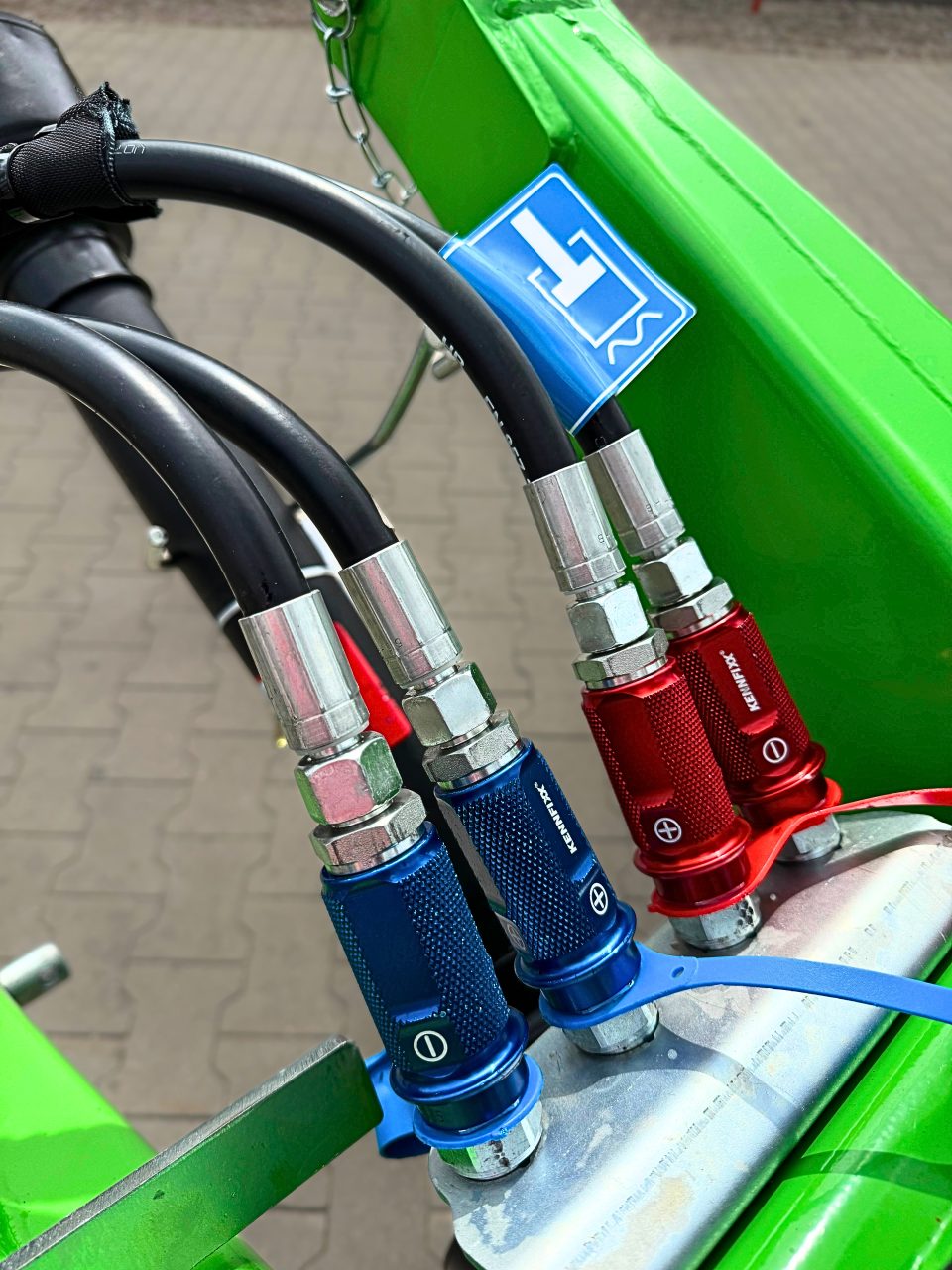

Intuitive identification of hydraulic connections

The appropriate colors and labels make it easier to connect the machine correctly for operation.

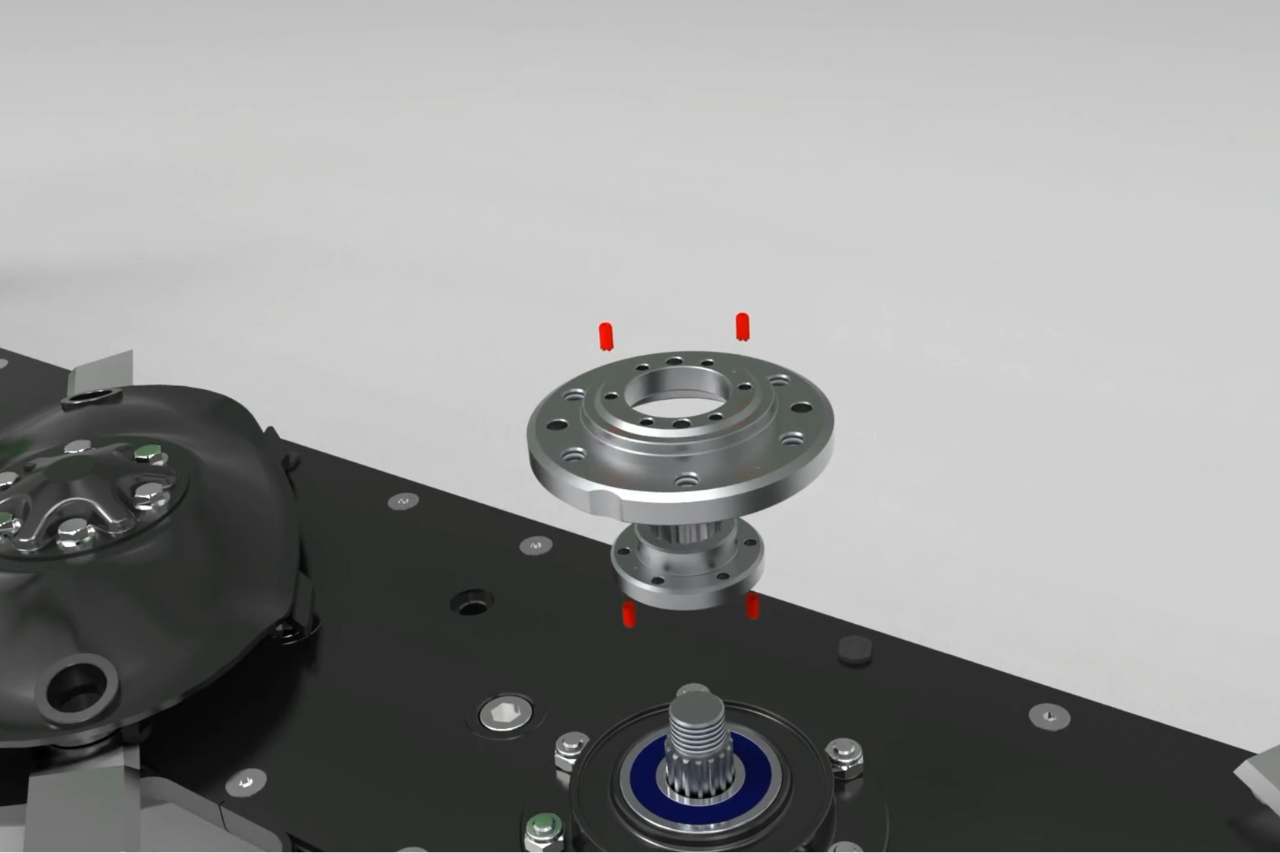

Cutter bar with the secure pins

When the disc strikes a stone or another obstacle, the shear bolts break, protecting the remaining drive components from damage.

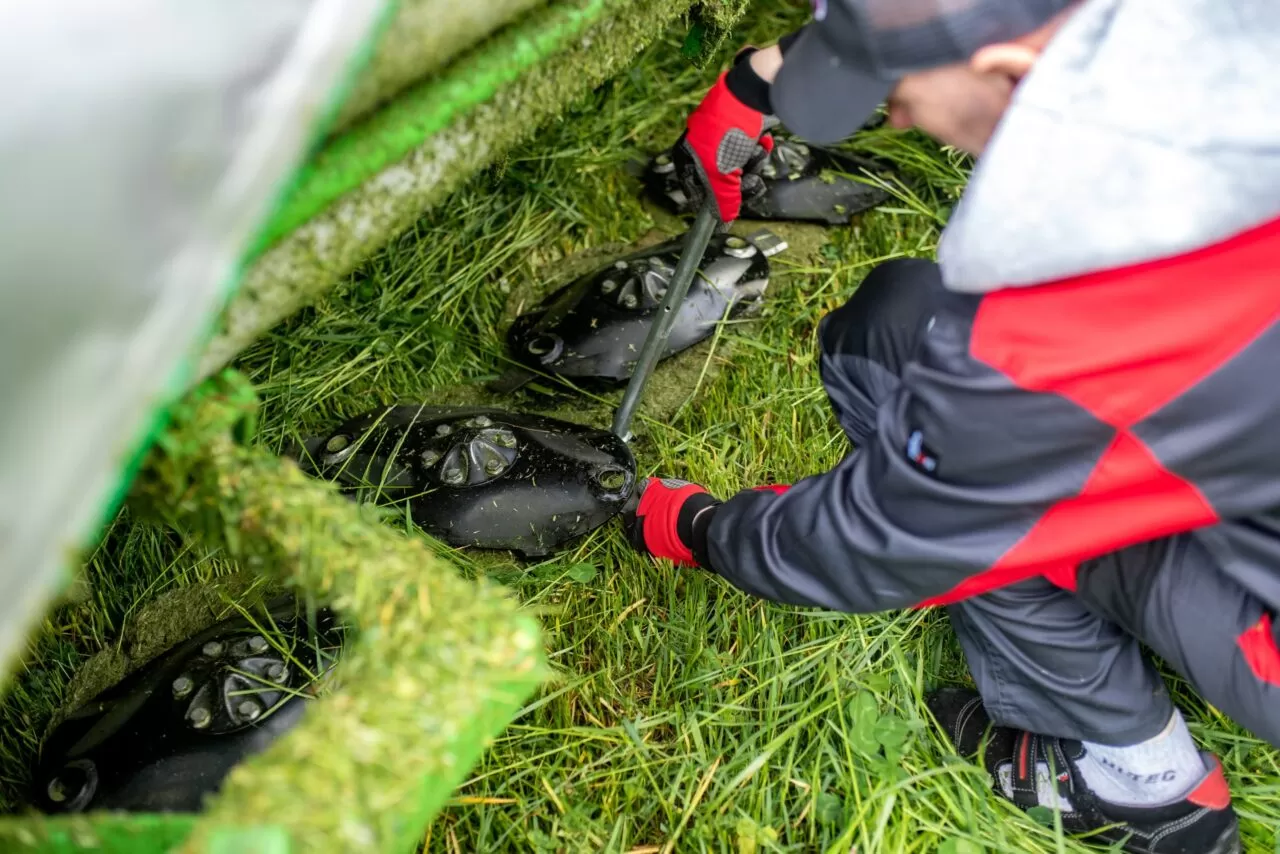

QUICK CHANGE Knife Replacement System

It enables quick and efficient replacement of worn knives.

Metal safety barriers + protective cover

The machine comes as standard with metal safety barriers and a reinforced canvas protective cover with a rubber edge.

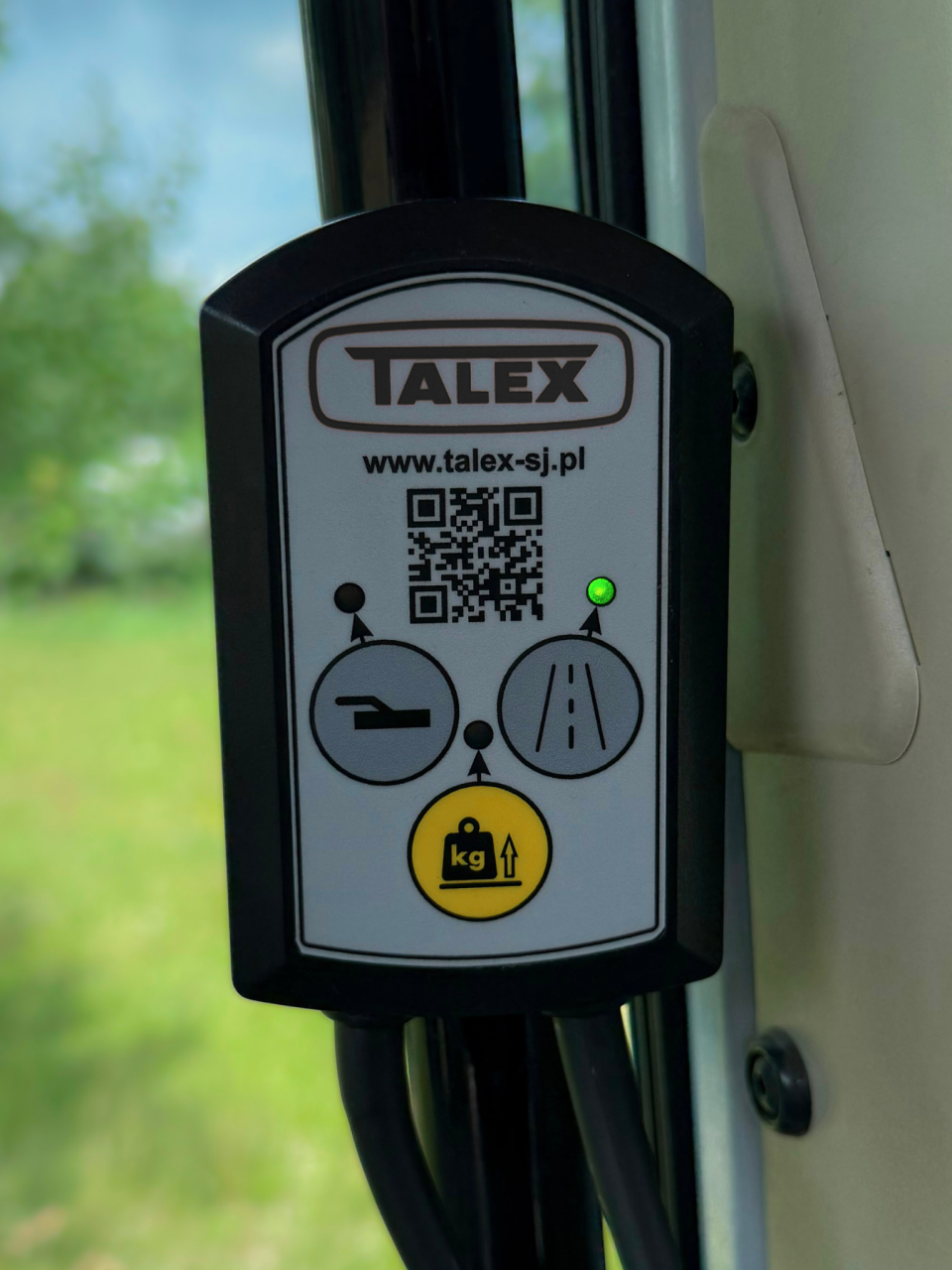

Remote control of mower functions

The remote allows the mower to be switched between transport mode and working mode. It also indicates when the cutterbar pressure relief system is activated.

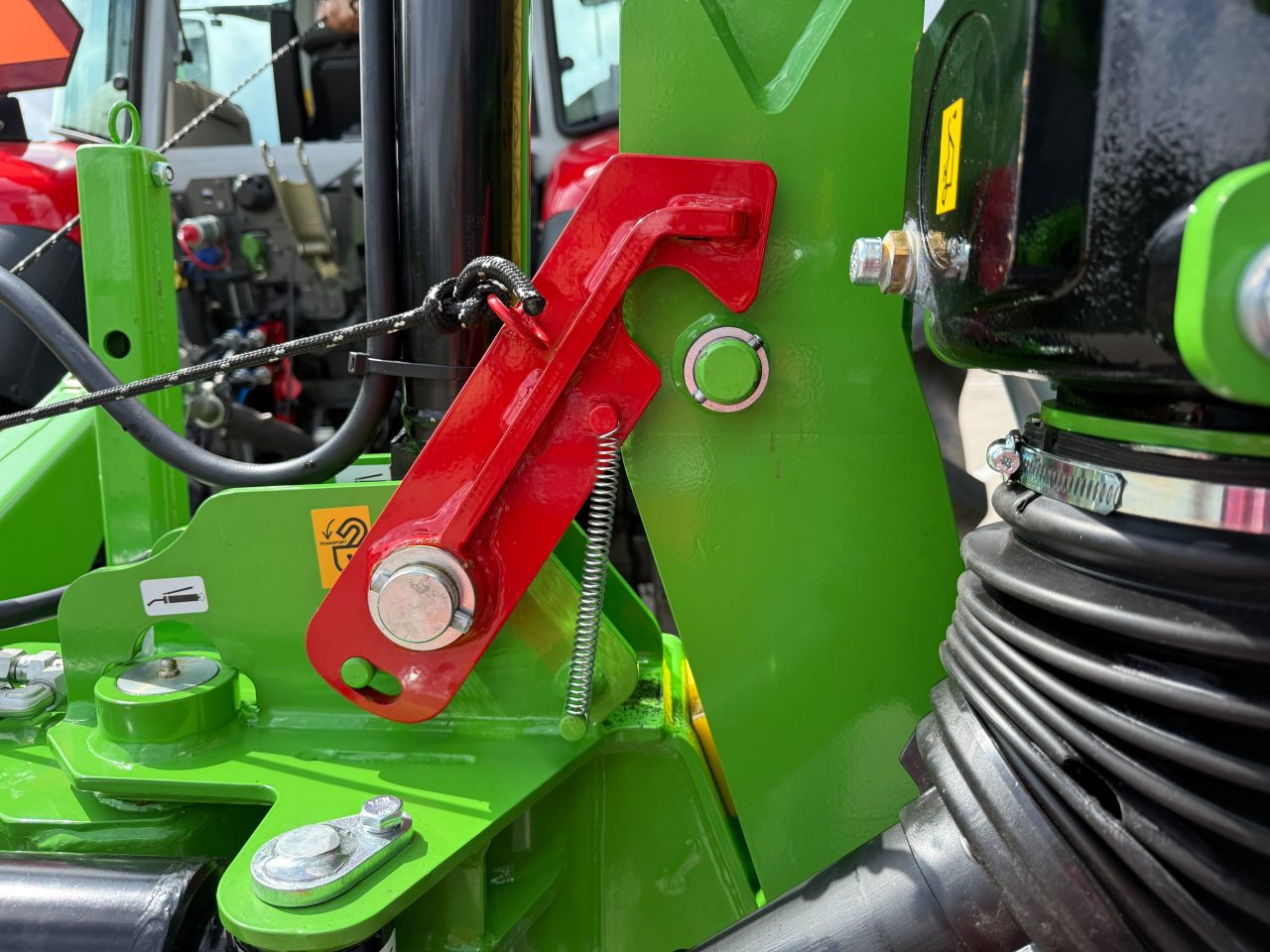

Transport safety lock

The primary transport safety feature prevents the mower from being accidentally lowered during transport and does not require the operator to leave the tractor.

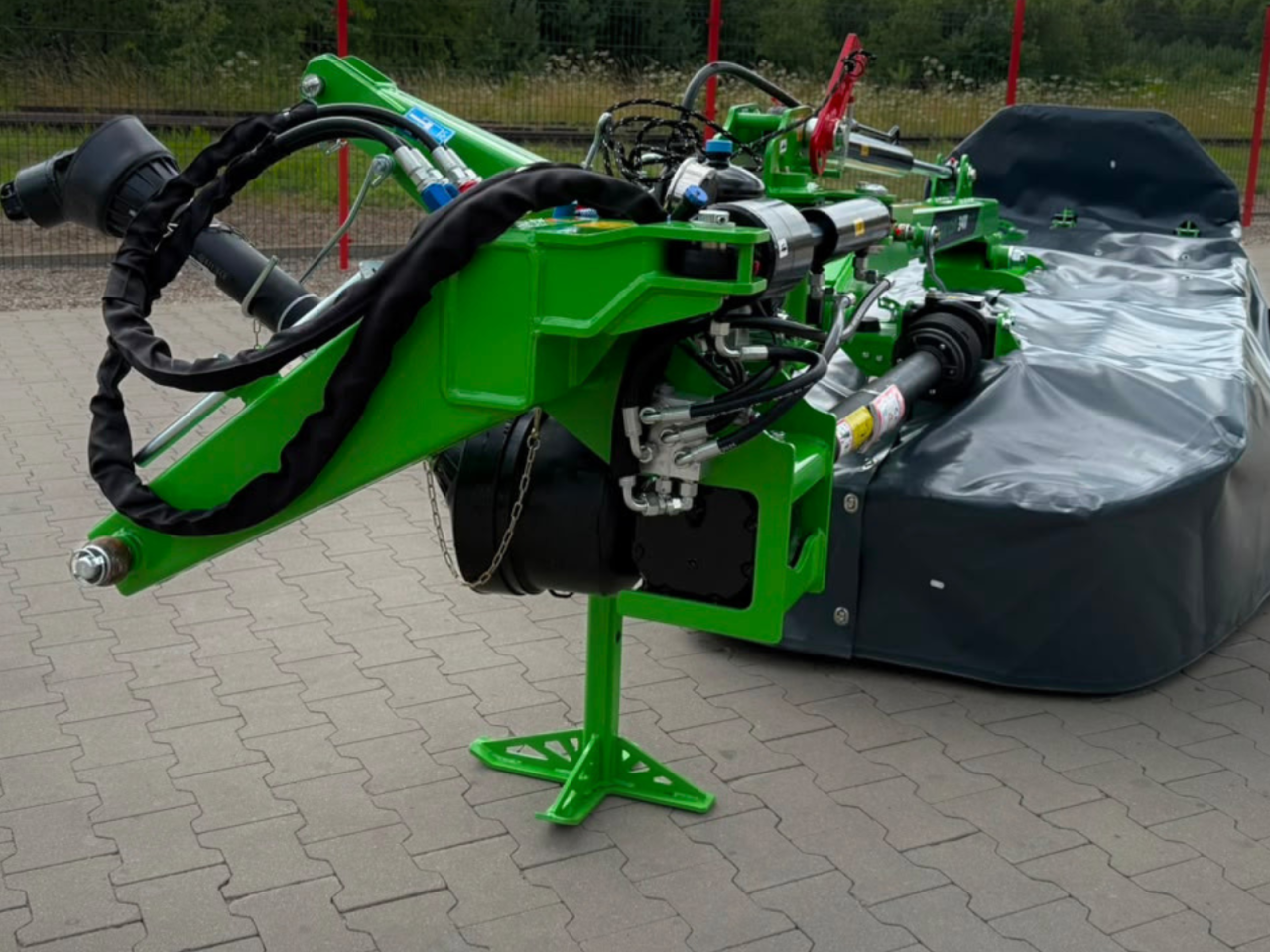

Support leg

It enables the machine to be positioned stably after being disconnected from the tractor.

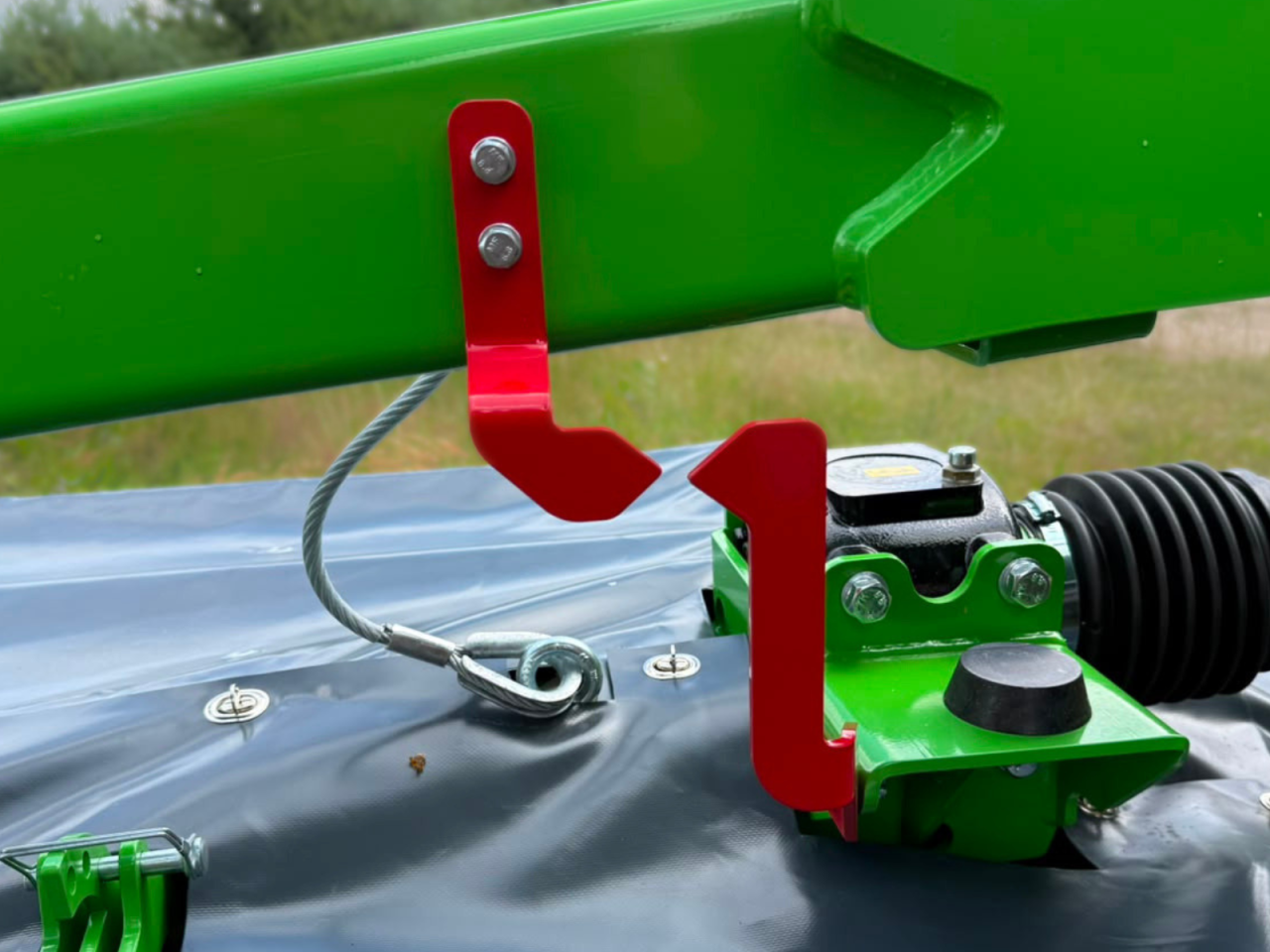

Ergonomic indicator for easy machine adjustment

After lowering the cutting unit onto the ground, the indicators should be aligned. To do this, raise or lower the hitch frame using the tractor’s lower links.

Swath deflector

Responsible for properly arranging the cut material.

TypeMAXI CUT 3,00MAXI CUT 3,40
Cutting width [m]3,003,40
Min. Power Required [HP]90100
Weight [kg]9901050
Work Efficiency[ha/h]3,754,25
Working speed (km/h)10 - 1510 - 15
Transport speed (km/h)2020
Number of discs/knives [pcs]7/148/16
Hitch categoryII/IIIII/III
PTO shaft [Nm]830 Nm, L-1300, right-hand overrunning clutch 2400 Nm + friction clutch 1500 Nm830 Nm, L-1300, right-hand overrunning clutch 2400 Nm + friction clutch 1500 Nm
Mower working width-17* - +17*-17* - +17*
PTO speed [RPM]540540

  • Telescopic PTO shaft, 830 Nm, L-1300, right-hand overrunning clutch 2400 Nm + friction clutch 1500 Nm
  • Double outer swathwheel
  • Cutter bar with the secure pins
  • Heavy-duty safety barriers
  • Durable secure tarpauline
  • Quick knife replacement tool
  • Hydraulic pressure relief system
  • Hydraulic safety valve
  • Set of spare knives
