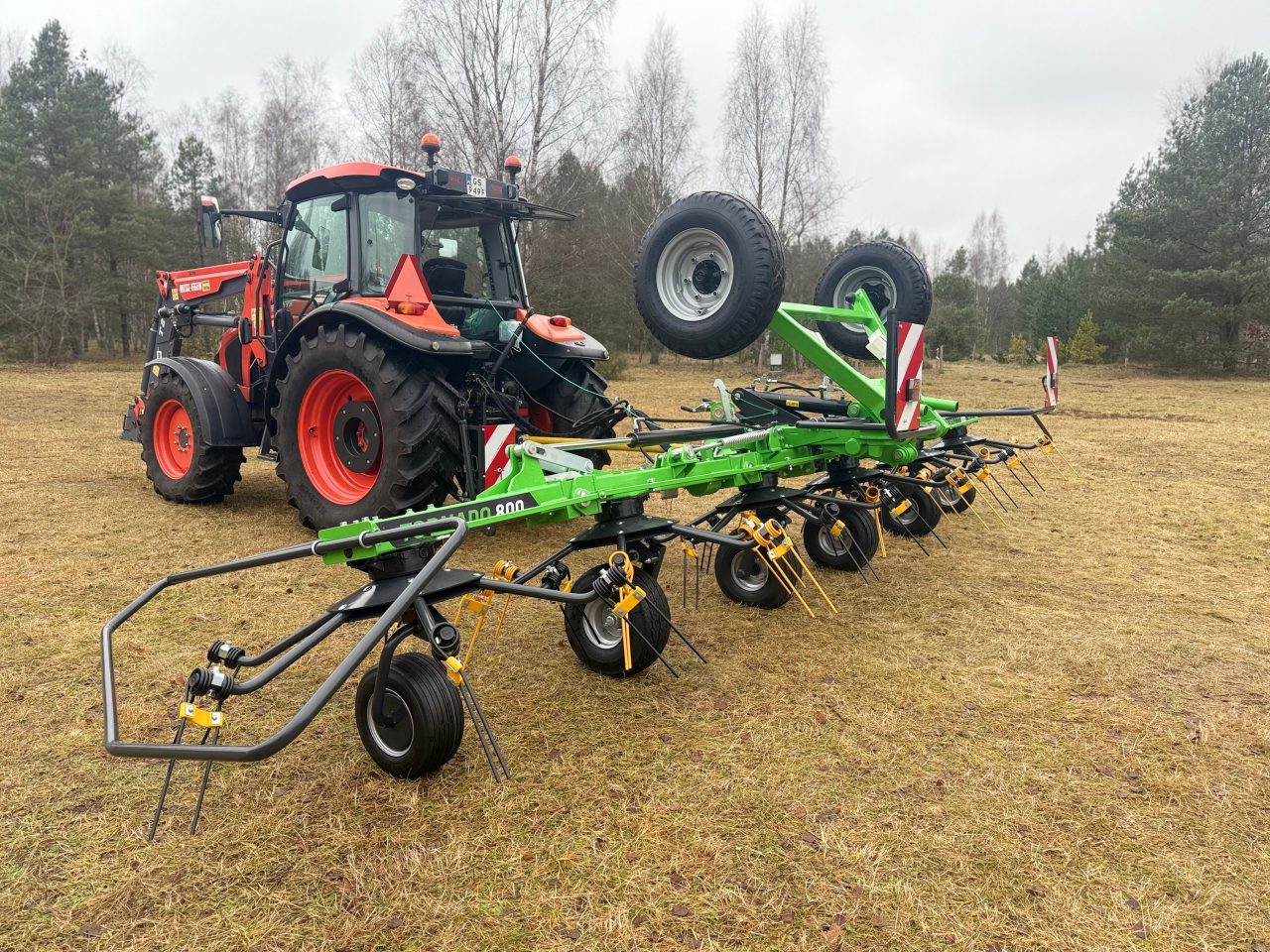

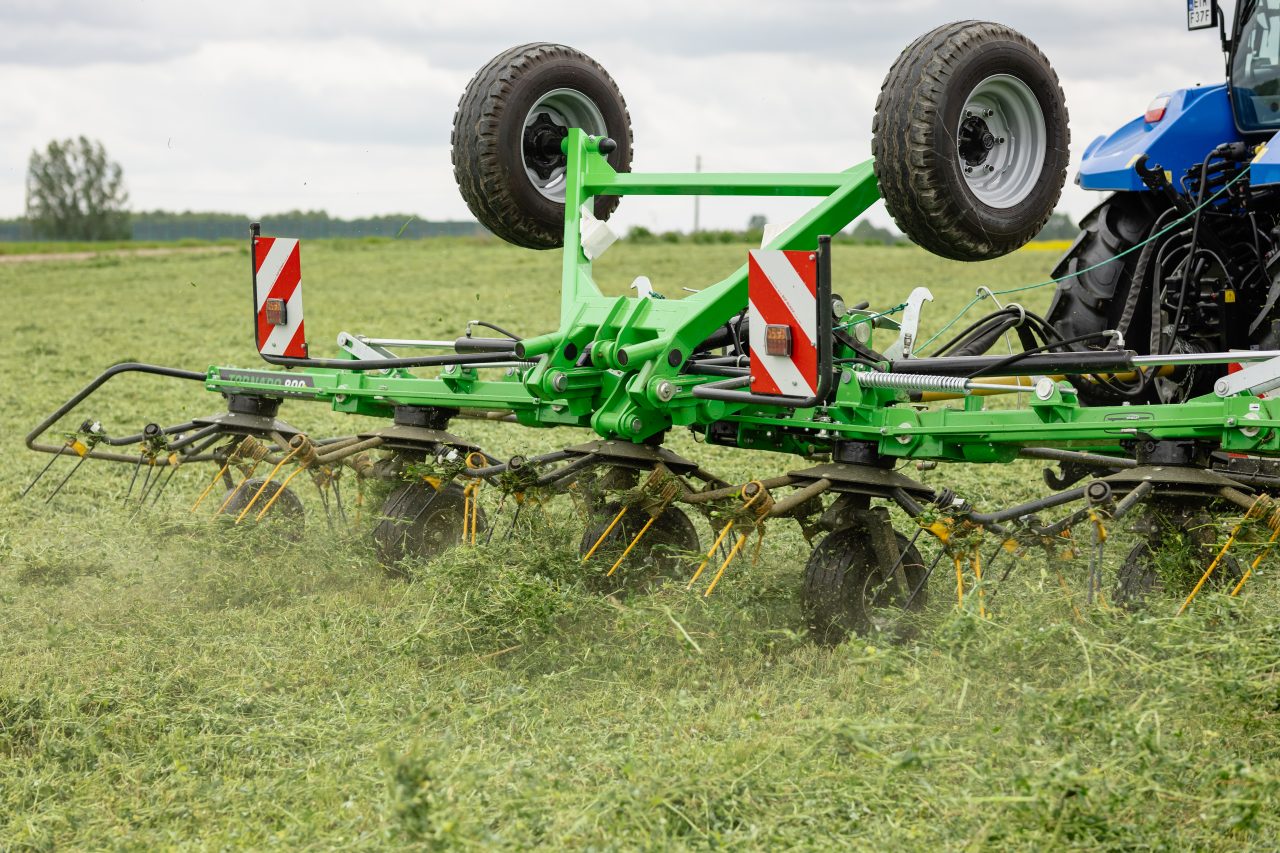

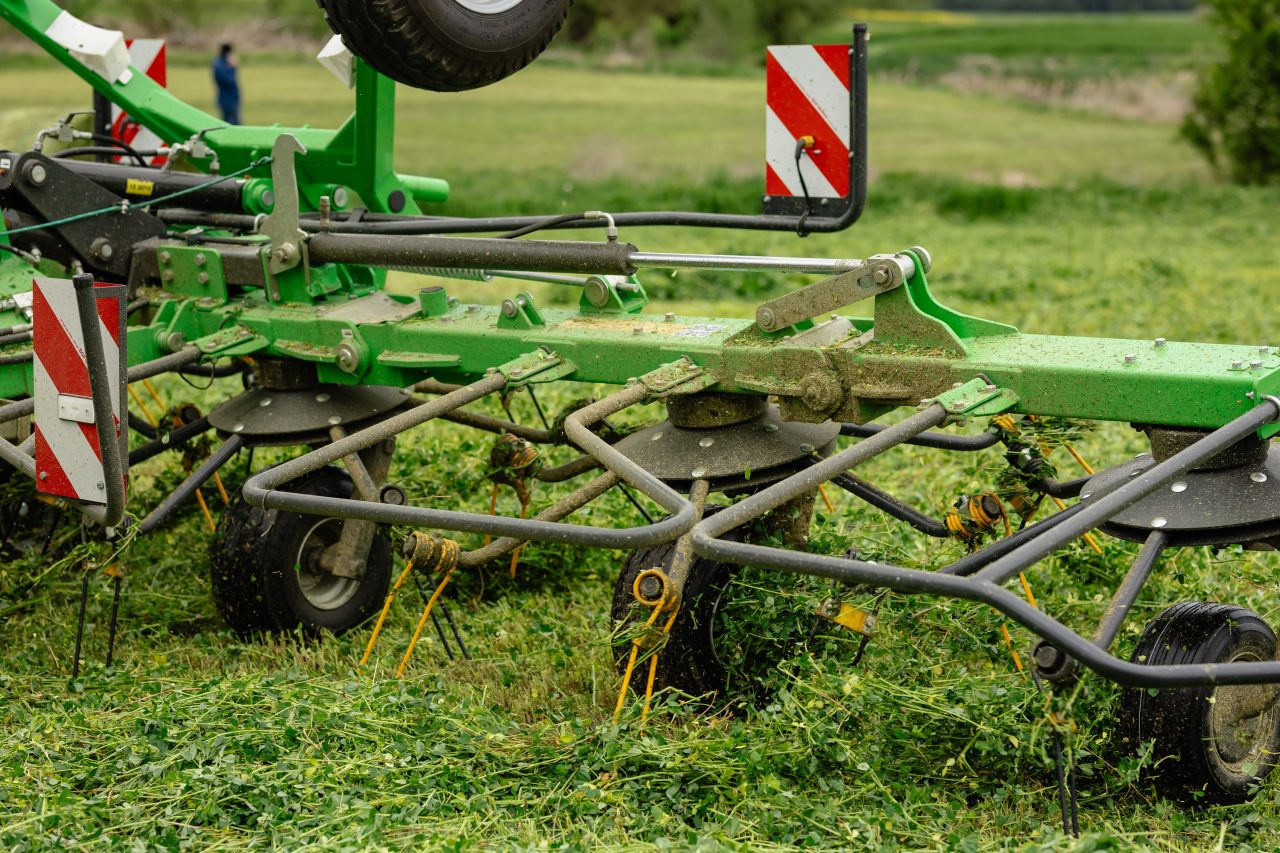

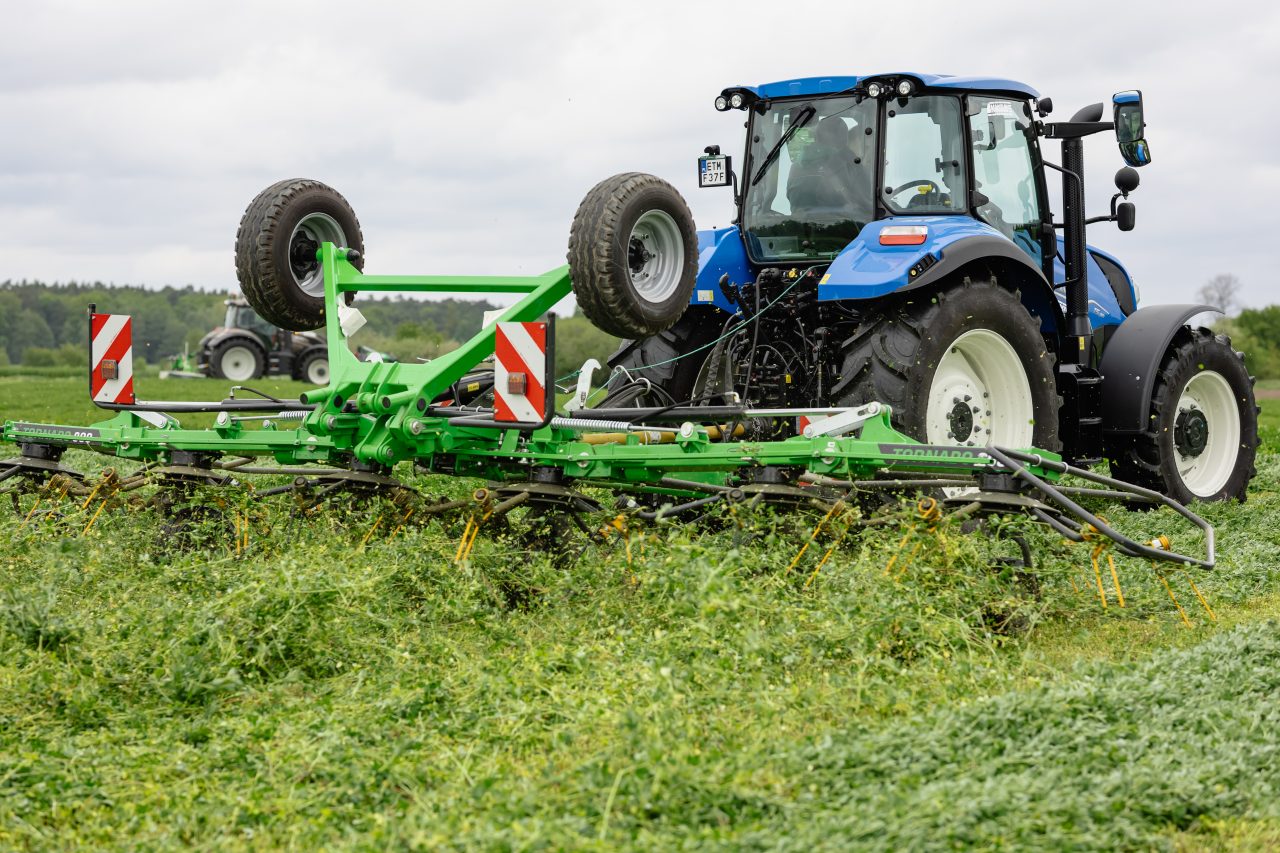

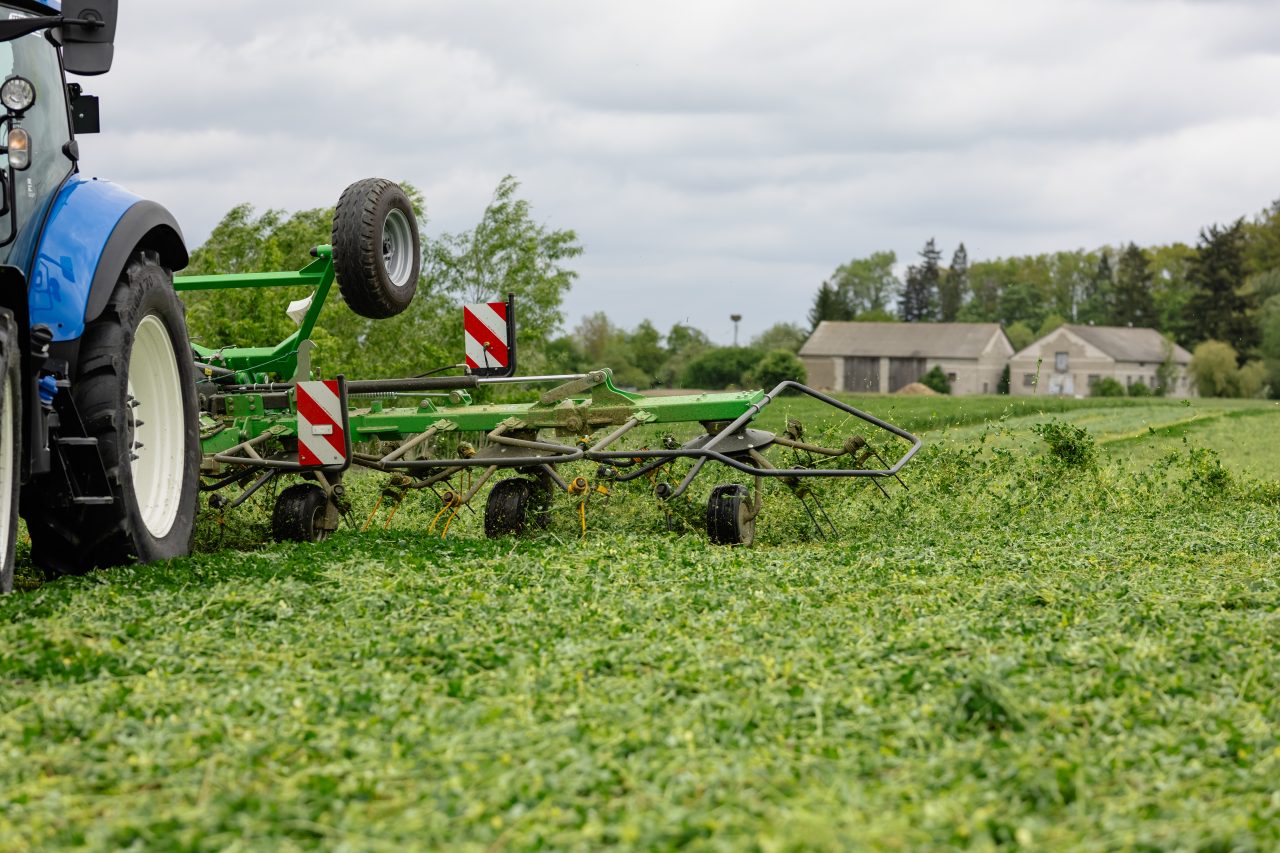

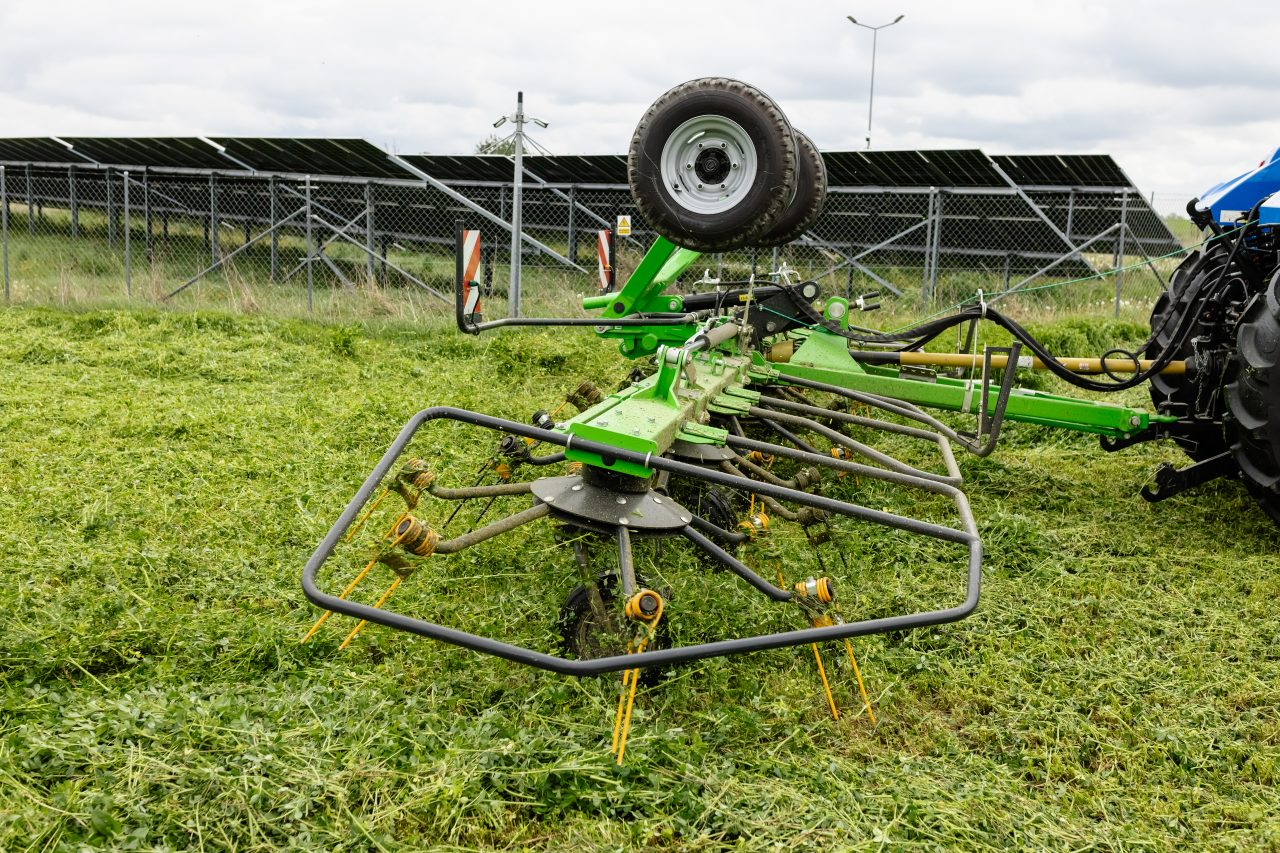

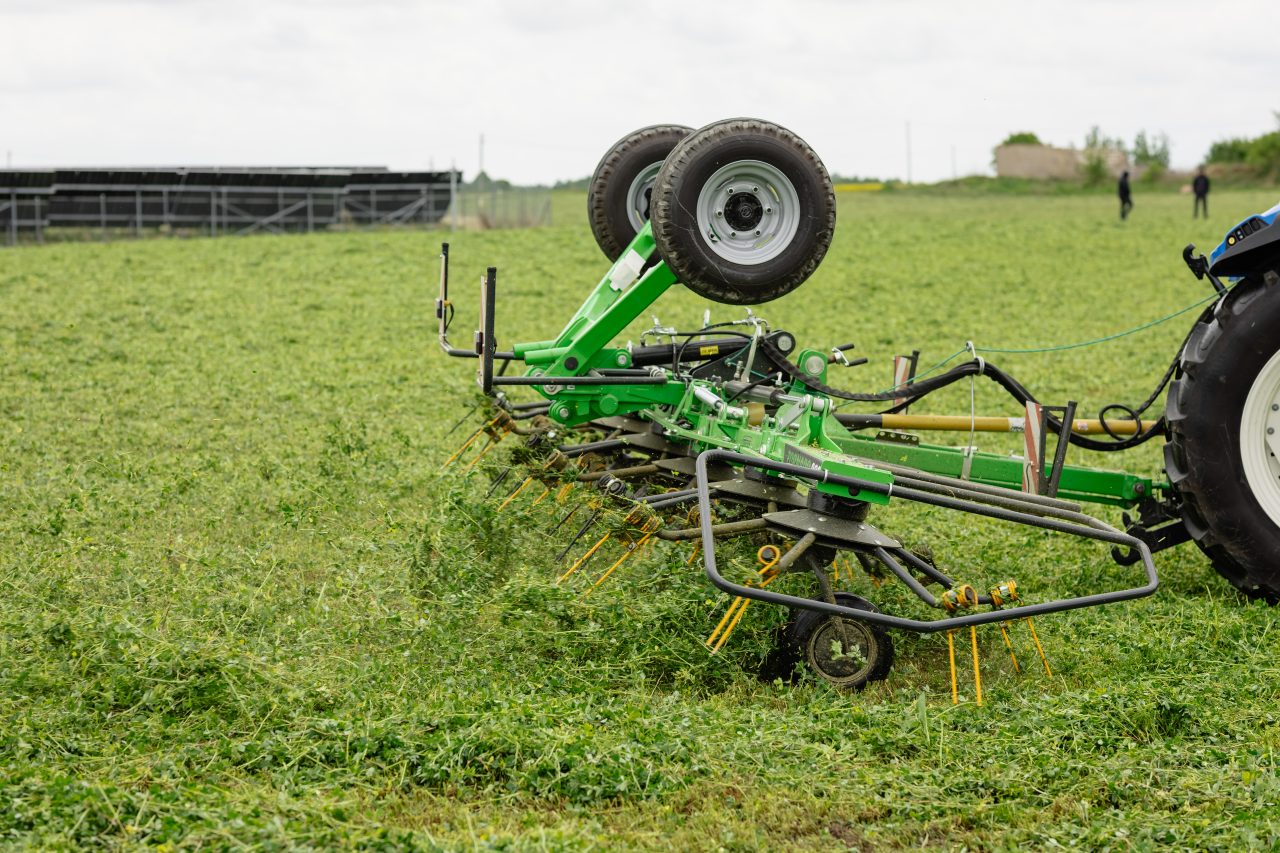

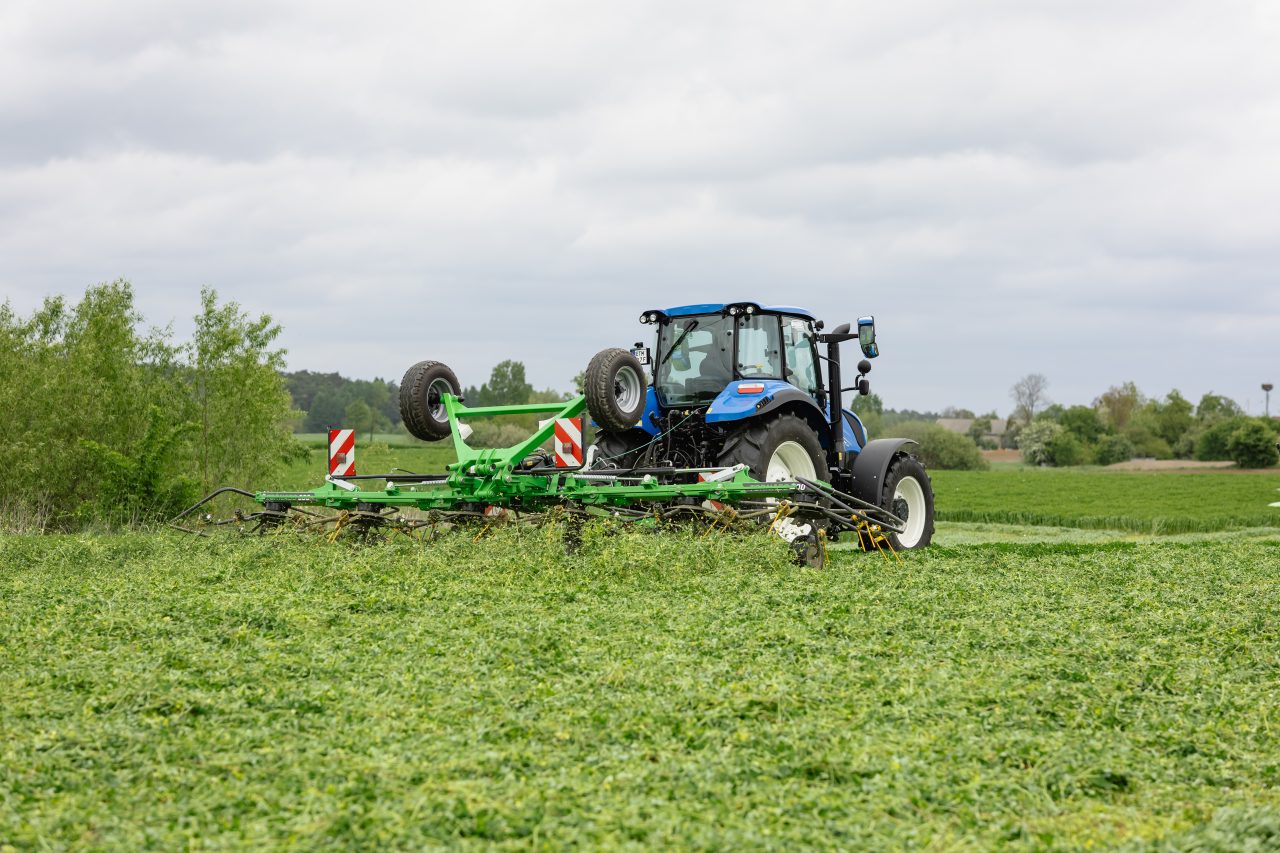

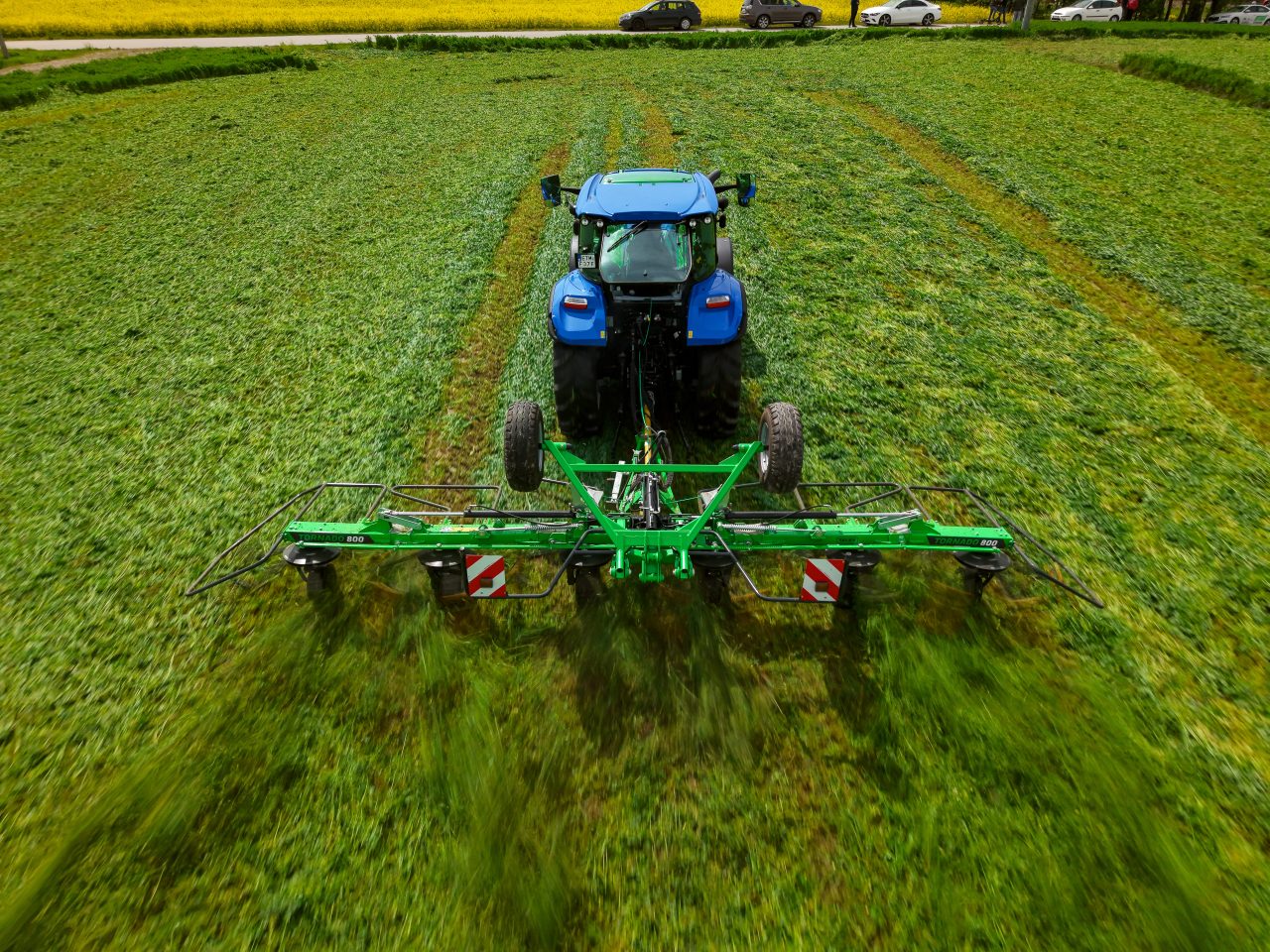

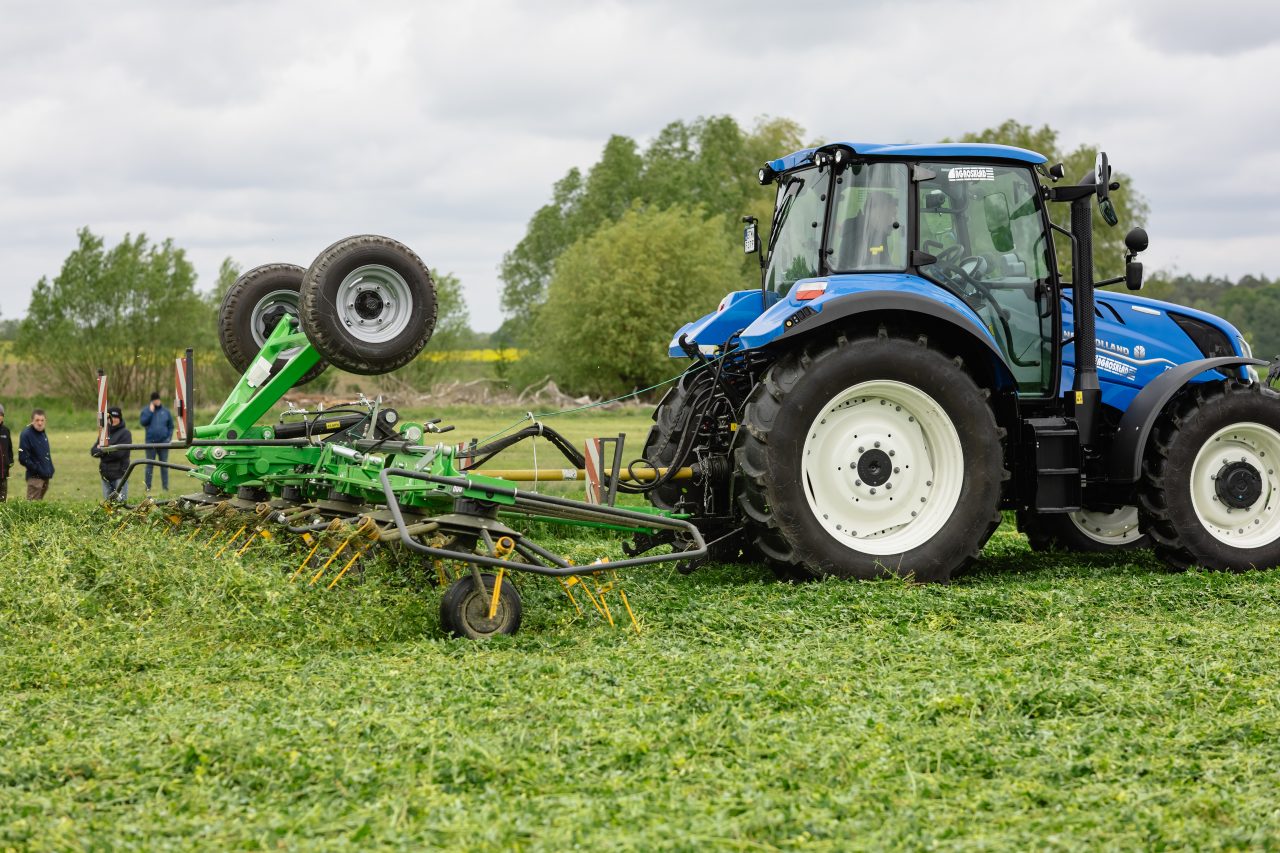

6-Rotor Tedder TORNADO 8.00

The TORNADO 8.00 tedder is a six-rotor machine designed for efficient tedding of straw and hay, accelerating the drying process of the biomass while minimizing nutrient losses. Thanks to its large working width, the machine delivers exceptionally high performance, enabling the effective completion of even the most demanding tasks.

Find a dealer Please send me a quote
Recommended tractor power
From 80 HP
Mounting type
  • For a tractor
Available working width
8,00m
User manuals

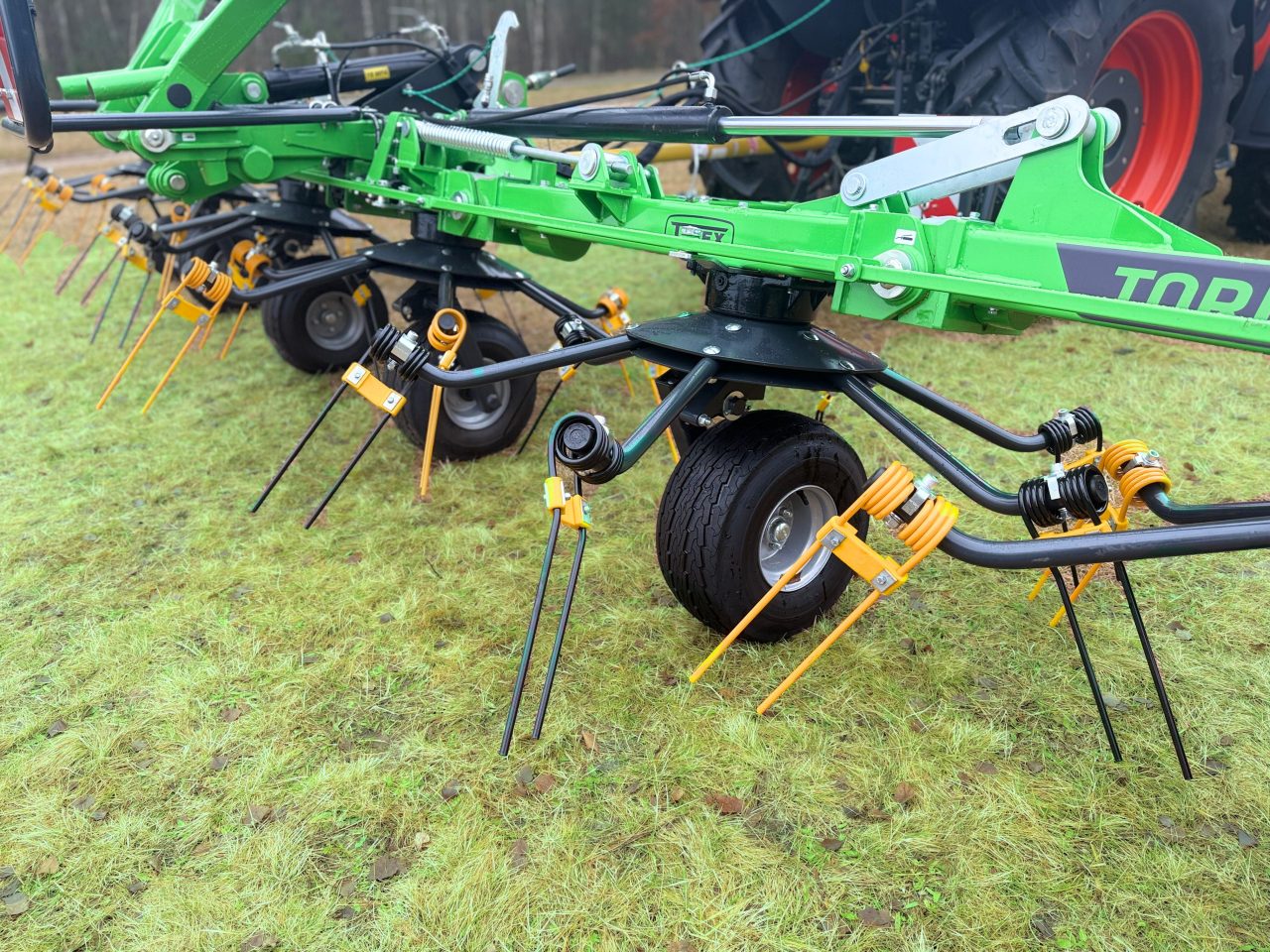

Grasping fingers

Made from 10 mm diameter wire

Hydraulic system

  • Smooth and synchronised unfolding makes the job easier
  • The entire system is controlled from a single section.

Warning signs

They ensure safety during transport

Impellers

6 six-bladed rotors

Wheel adjustment

Allows the machine to operate at the edges of meadows

Type of tedder6-Rotor Tedder TORNADO 8.00
Working width [m]8,00
Min. power demand [HP]80
PTO rotational speed [RPM]540
PTO shaft [Nm]460 Nm L-2113 wide-angle with overrunning clutch
Number of rotors [pcs.]6
Number of arms on rotor [pcs]6
Hitch categoryAgricultural hitch
Required number of tractor hydraulic connections4
Rotor dimension [mm]1820
Mass [kg]1468
Wheel size(2 pcs) 18x8.5-8 / (4 pcs) 16x6.5-8 / (2 pcs) 10x75-15.3
Transport height (mm)3990

  • PTO shaft
  • Hydraulic adjustment of the working angle
  • Warning signs
  • Adjusting the wheel alignment for operation
  • Hydraulic working height adjustment
