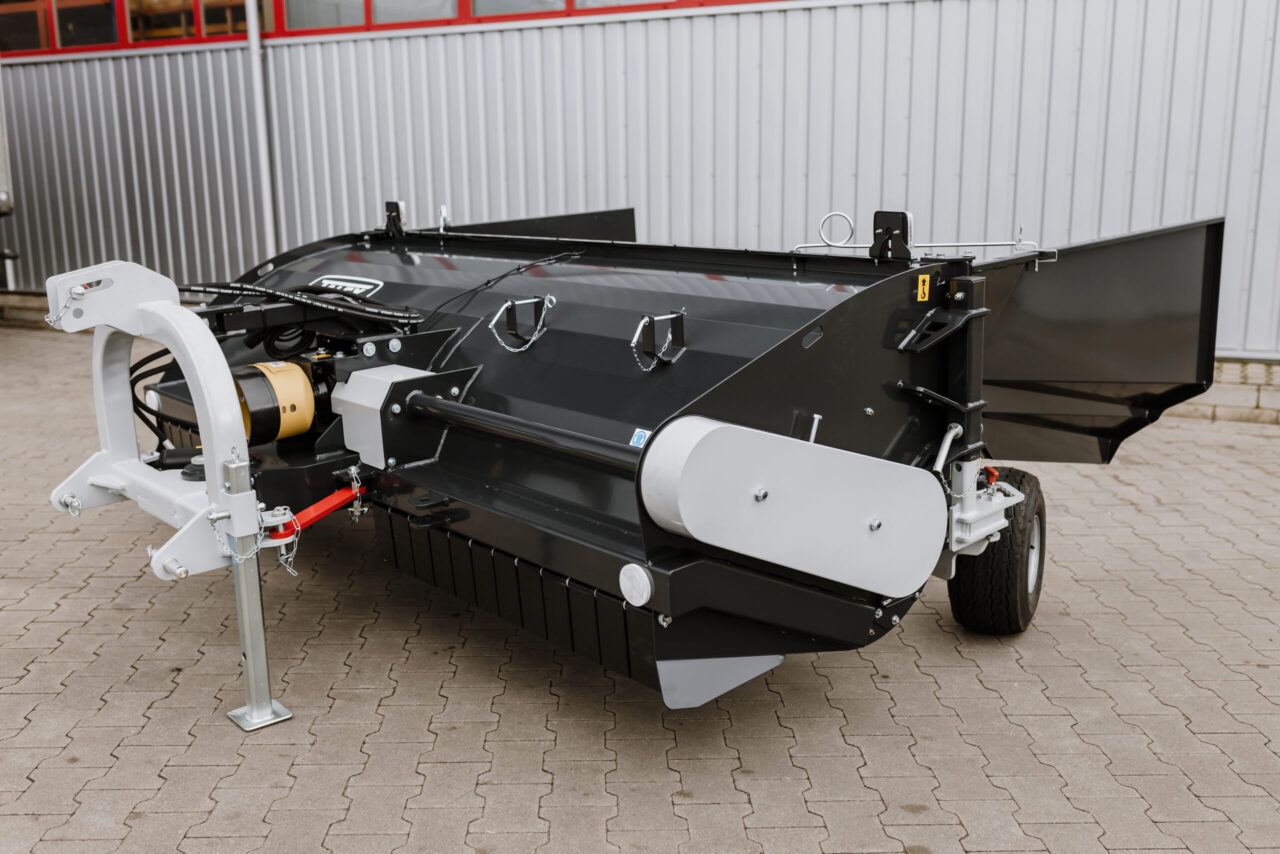

SWATH CONDITIONER BOCIAN 2,75

The swath conditioner BOCIAN is a machine designed to speed up the drying process. Through the high-speed shaft, in which 8.5 mm tines are equipped, we obtain a raised, broken and aerated material with low humidity, at the same time arranged to any width through adjustable outlet flaps. BOCIAN 2.25 - the smaller brother of BOCIAN 2.75 - has been checked and tested by farmers from Scandinavian countries and Great Britain and turned out to be the most practical tedder that meets the requirements of today's milk producers.

User manuals Find a dealer

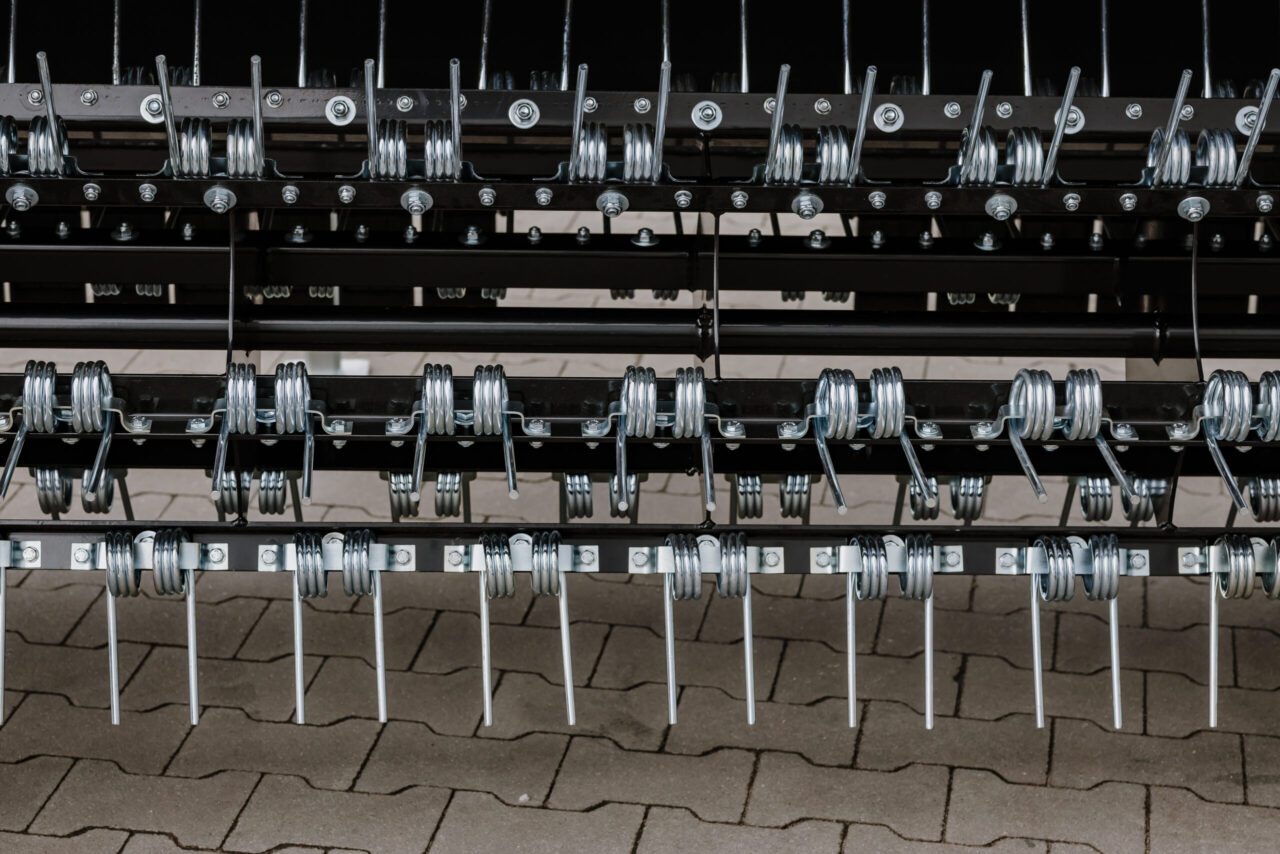

High-speed tedding shaft

  • Equipped with 8,5mm thick spring tines
  • 744mm diameter, 86 tines
  • Driven by a chain through a toothed wheel secured with a breakaway pin

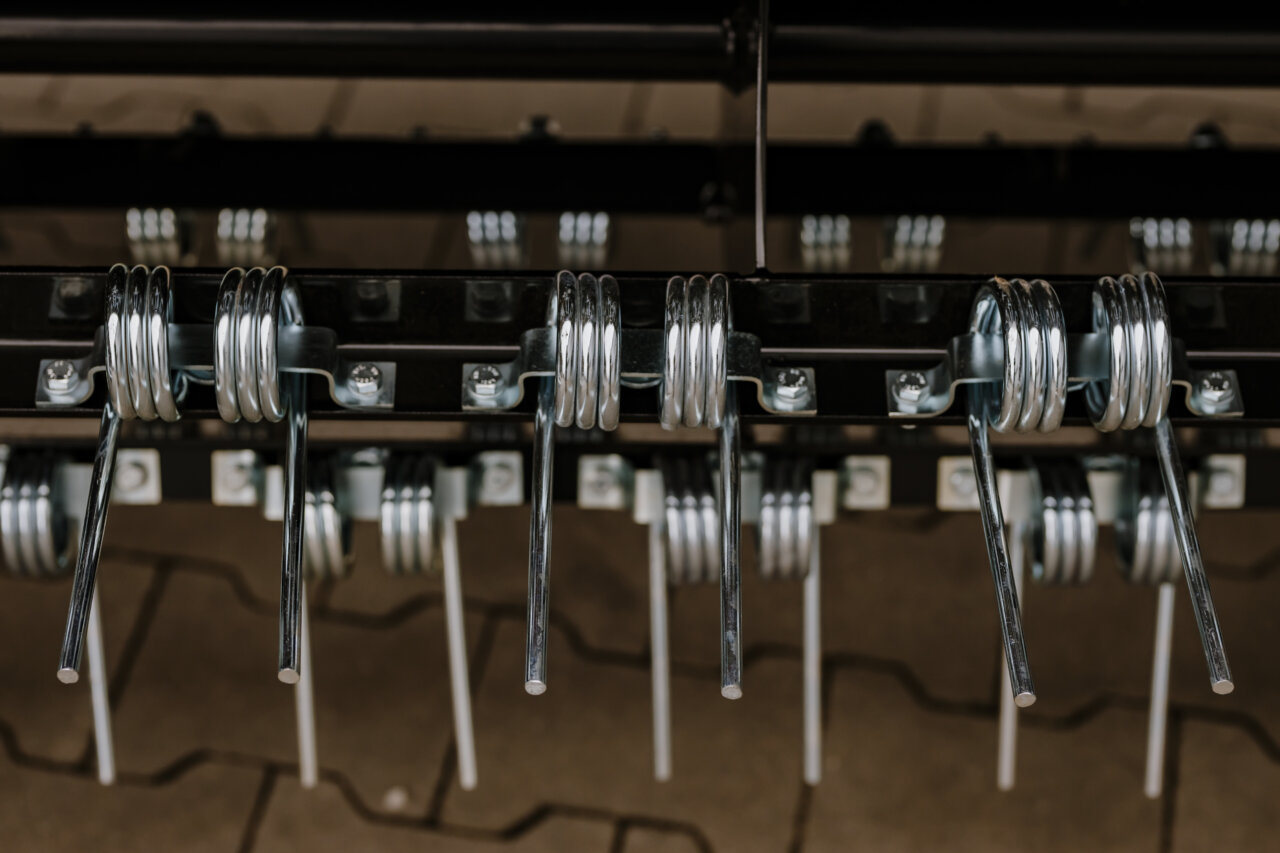

Tines with protection

  • 8,5mm thick
  • They have protections that prevent broken or damaged springs from entering the swath

Reinforced construction

  • Durable, easy to use - the tedded material is not twisted, but evenly arranged - ready for further work

Swath adjustment

  • Adjustment of outlet flaps allows you to adjust the width of the roller to the width of the machine that participates in the next stage: baler, forage harvester or self-loading wagon

Wheels

  • The swivel castor wheels allow height adjustment

Technical data:

TypeBOCIAN 2,75
Working width [mm]2750
Power demand [HP] ~70
Tines [pcs.] 86
Work shaft diameter [mm]744
PTO RPM 540
Work shaft RPM 540
Efficiency [ha/h] 2,75
Working speed [km/h]8-10
Transport speed [km/h]up to 20
Tyres18.5x8.50-8
Mass [kg] 750
Height [mm]1140-1268
Hitch cat.II

Standard equipment

  • 460 Nm PTO shaft with one-way clutch and 900 Nm friction clutch
  • Protective flaps
  • Warning signage
  • Road wheels
  • Hydraulic headstock 25°
  • Adjustment of the width of the thrown mass
  • 3-point hitch
  • LED lights

Additional equipment:
